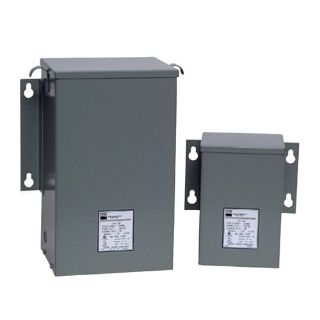

Actual Product May Vary From Image

HZ1000 SHD

Name: HZ1000 SHD
Brand: SolaHD (Emerson)
SKU: HZ1000 SHD
Price: 962.95 USD
Availability: OutOfStock

1KVA 240X480-120 ICT

Manufacturer: SolaHD (Emerson)

Manufacturer part number: HZ1000

Availability: Ships in 4-6 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

$962.95

Qty:

Product Details

Brand Name

SolaHD

Type

MCR Hardwired Series Power Line Conditioning with Voltage Regulation

Description

Industrial Control Transformer, 1 Kva, Type: NEMA 3R, Volts Primary: 240/480, 230/460, 220/440, Volts Secondary: 120/115/110, Frequency: 50/60 Hz

Application

Industrial Automation and Control Equipment Power PLCs, Machine Tools, Robotics, Semiconductor Fabrication Equipment

Standards

RoHS Compliant

Features

+/- 3% output voltage regulation, Surge protection tested to ANSI/IEEE C62.41. Class A & B waveform, Harmonic filtering, Hardwired, Galvanic isolation, Noise attenuation 120 dB common mode/60 dB transverse mode

Specifications

Country of Origin:	US
Enclosure:	NEMA 3R
Frequency Rating:	50 Hz
Height:	18 in
Input:	110, 120, 220, 240, 380, 415 VAC
KVA Rating:	1
Length:	10 in
Mounting:	Bracket
Noise Level:	35 to 65 dBA
Number of Phases:	1
Output Power:	110, 120, 220, 240 VAC
Primary Voltage:	240/480, 230/460, 220/440 Volt Primary
Secondary Voltage:	120/115/110 Volt Secondary
Style:	1
Temperature Rating:	80 DEG Temperature Rise under full load
Wattage:	1,000 W
Width:	13 in

Resources

Spec Sheet Warranty
