I101 MAR

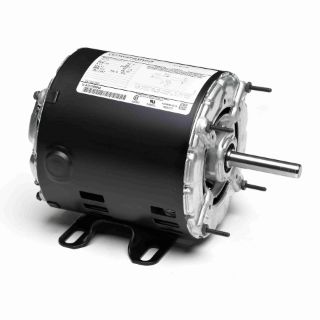

Picture of I101 MAR
Actual Product May Vary From Image

Product Details

Manufacturer:
Marathon Electric Motors
Manufacturer part number:
I101
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Expected Leadtime 10 days
Estimated dates are contingent upon manufacturer stock.
Price on Request

Description

Alternate Supplier #

143TCDR5303

Features

Heavy gauge steel frame and base Capacitor start induction run design Will accept flange kit, see accessory section

Specifications

Assembly/Box Mounting:F1 ONLY
C Dim (IN):10.99
CE:Y
Connection Drawing Number:102005-51
Country of Origin:United States of America
CSA:Y
Current:18.8/9.7-9.4
DE Bearing Size:6205
DE Bearing Type:Ball
Duty:Continuous
Efficiency:70
Electrical Type:Capacitor Start Induction Run
Enclosure Type:Drip Proof
Frame Length (IN):7.6
Frame Material:Rolled Steel
Frame Size:143
Frame Suffix:T
Frame Type:143T
Frequency:60
Harmonized Tariff Code:8501.40.6040
HP:1.50
Insulation Class:B
IP Code:22
KVA Code:J
Max Ambient:40°C
Motor Orientation:Horizontal
Mounting Type:Rigid Base
NEMA Design:L
Number of Poles:2
Number of Speeds:1
ODE Bearing Size:6203
ODE Bearing Type:Ball
Outline Drawing Number:A-100118-706
Phases:1
Power Factor:76
Power Rating (HP):1.50
Power Rating (kW):1.1
Resistance Main:0
Rotation:Selective Counterclockwise
Service Factor:1.15
Shaft Diameter (IN):0.875
Shaft Extension:2.25
Shaft Type:T
Speed:3495
Speed Max:3495
Starting Type:Across The Line
Type of Overload Protector:No
UL:Recognized
Voltage:115/208-230

Resources

Engineering DrawingSpec Sheet

Products Specifications

Brand Name
Marathon
Enclosure
Drip Proof
Frequency Rating
60
Horsepower
1 1/2 HP
Speed Rating
3495
Type
Capacitor Start Induction Run
Voltage Rating
208-230
