I113 MAR

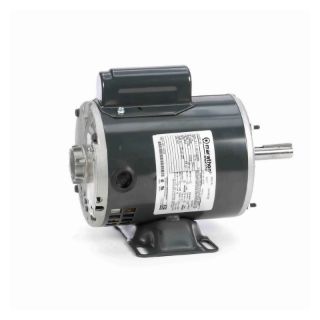

Picture of I113 MAR
Actual Product May Vary From Image

Product Details

Manufacturer:
Marathon Electric Motors
Manufacturer part number:
184TCDR7026
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Expected Leadtime 10 days
Estimated dates are contingent upon manufacturer stock.
Price on Request

Description

Brand Name

Marathon®

Type

4-Pole Continuous-Duty

Description

Marathon® AC Motor, 4-Pole Continuous-Duty, General Purpose AC Motors Application, Capacitor Start Motors Special Features, 3 hp, 115/208 to 230 VAC, 33/17.7 to 16.5 A, 60 Hz Frequency, 1 ph ph, 1758 rpm Speed, Open Drip-Proof Enclosure, 184T Frame, 1.13 in Dia x 2.75 in L Shaft, CCW Rotation, 1.15 Service Factor, Ball Bearing, 13.7 ft-lb Torque, Rigid Base Mounting, 40 deg C, Insulation Class: Class B, Rolled Steel, 15.29 in L x 11.01 in W x 10.42 in H Dimensions

Standards

CE | CSA Certified | UL Listed

Features

Capacitor Start Motors

Specifications

Amperage Rating:33/17.7 to 16.5 A
Application Type:General Purpose AC Motors
Bearing Type:Ball
Country of Origin:US
Dimensions:15.29 in L x 11.01 in W x 10.42 in H
Enclosure Type:Open Drip-Proof
Frame:184T
Frequency Rating:60 Hz
Horsepower:3 hp
Insulation Class:Class B
Material:Rolled Steel
Mounting Type:Rigid Base
Phase:1 ph
Rotation:CCW
Service Factor:1.15
Shaft Size:1.13 in Dia x 2.75 in L
Speed:1758 rpm
Temperature Rating:40 deg C
Torque Rating:13.7 ft-lb
Voltage Rating:115/208 to 230 VAC

Products Specifications

Brand Name
Marathon
Enclosure
Drip Proof
Frequency Rating
60
Horsepower
3 HP
Speed Rating
1758
Type
Capacitor Start Induction Run
Voltage Rating
208-230
