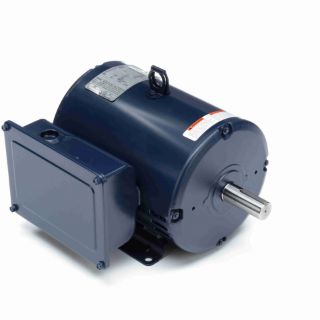

I113A MAR

Name: I113A MAR
Brand: Marathon Electric Motors
SKU: I113A MAR
Availability: OutOfStock

Actual Product May Vary From Image

Manufacturer:

Manufacturer part number:

I113A

CBT Inventory

Vendor Inventory

Availability:

Expected Leadtime 10 days

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

184TCDW7026

Heavy gauge steel frame and base Capacitor start induction run design F1 mounting only, cannot reassemble to F2

Assembly/Box Mounting:	F1 ONLY
C Dim (IN):	14.21
CE:	Y
Connection Drawing Number:	005062.01ME
Country of Origin:	Mexico
CSA:	Y
Current:	34.0/17.4-16.9
DE Bearing Size:	6206
DE Bearing Type:	Ball
Duty:	Continuous
Efficiency:	75.5
Electrical Type:	Capacitor Start Induction Run
Enclosure Type:	Drip Proof
Frame Length (IN):	1.
Frame Material:	Rolled Steel
Frame Size:	184
Frame Suffix:	T
Frame Type:	184T
Frequency:	60
Harmonized Tariff Code:	8501.40.6040
HP:	3
Insulation Class:	F
IP Code:	22
KVA Code:	J
Max Ambient:	40°C
Motor Orientation:	Horizontal
Mounting Type:	Rigid Base
NEMA Design:	N
Number of Poles:	4
Number of Speeds:	1
ODE Bearing Size:	6205
ODE Bearing Type:	Ball
Outline Drawing Number:	035655-1000
Phases:	1
Power Factor:	76
Power Rating (HP):	3
Power Rating (kW):	2.2
Resistance Main:	0
Rotation:	Selective Counterclockwise
Service Factor:	1.15
Shaft Diameter (IN):	1.125
Shaft Extension:	2.81
Shaft Type:	T
Speed:	1745
Speed Max:	1745
Starting Type:	Across The Line
Type of Overload Protector:	No
UL:	Recognized
Voltage:	115/208-230
