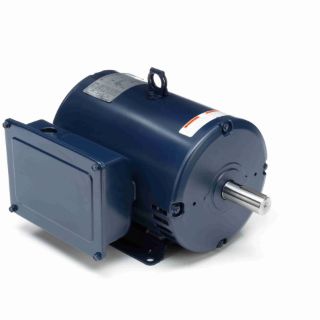

I114A MAR

Name: I114A MAR
Brand: Marathon Electric Motors
SKU: I114A MAR
Availability: OutOfStock

Actual Product May Vary From Image

Manufacturer:

Manufacturer part number:

I114A

CBT Inventory

Vendor Inventory

Availability:

Expected Leadtime 10 days

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

184TBDW7026

Heavy gauge steel frame and base Capacitor start/capacitor run design for reduced amperage F1 mounting only, cannot reassemble to F2

Assembly/Box Mounting:	F1 ONLY
C Dim (IN):	14.71
CE:	Y
Connection Drawing Number:	005018.01ME
Country of Origin:	Mexico
CSA:	Y
Current:	23.0-21.0
DE Bearing Size:	6206
DE Bearing Type:	Ball
Duty:	Continuous
Efficiency:	83
Electrical Type:	Capacitor Start Capacitor Run
Enclosure Type:	Drip Proof
Frame Length (IN):	1.5
Frame Material:	Rolled Steel
Frame Size:	184
Frame Suffix:	T
Frame Type:	184T
Frequency:	60
Harmonized Tariff Code:	8501.40.6040
HP:	5
Insulation Class:	F
IP Code:	22
KVA Code:	H
Max Ambient:	40°C
Motor Orientation:	Horizontal
Mounting Type:	Rigid Base
NEMA Design:	NO DESIGN CODE
Number of Poles:	4
Number of Speeds:	1
ODE Bearing Size:	6205
ODE Bearing Type:	Ball
Outline Drawing Number:	035655-1050
Phases:	1
Power Factor:	94
Power Rating (HP):	5
Power Rating (kW):	3.7
Resistance Main:	.48
Rotation:	Selective Counterclockwise
Service Factor:	1.15
Shaft Diameter (IN):	1.125
Shaft Extension:	2.81
Shaft Type:	T
Speed:	1740
Speed Max:	1740
Starting Type:	Across The Line
Type of Overload Protector:	No
UL:	Recognized
Voltage:	208-230
