I116 MAR

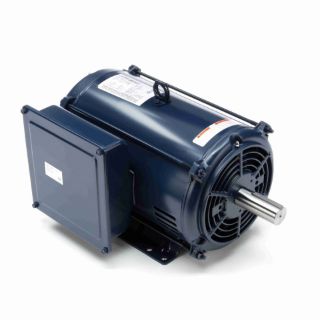

Picture of I116 MAR
Actual Product May Vary From Image

Product Details

Manufacturer:
Marathon Electric Motors
Manufacturer part number:
I116
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Expected Leadtime 10 days
Estimated dates are contingent upon manufacturer stock.
Price on Request

Description

Alternate Supplier #

215TBDW7028

Features

Heavy gauge steel frame and base Capacitor start/capacitor run design for reduced amperage Shaft extension 1-1/2" long by 1/2" diameter

Specifications

Assembly/Box Mounting:F1 ONLY
C Dim (IN):19.29
CE:Y
Connection Drawing Number:A-EE9048MF
Country of Origin:Mexico
CSA:Y
Current:49.0-44.0
DE Bearing Size:6307
DE Bearing Type:Ball
Duty:Continuous
Efficiency:82.5
Electrical Type:Capacitor Start Capacitor Run
Enclosure Type:Drip Proof
Frame Length (IN):12.4
Frame Material:Rolled Steel
Frame Size:215
Frame Suffix:T
Frame Type:215T
Frequency:60
Harmonized Tariff Code:8501.40.6040
HP:10
Insulation Class:F
IP Code:22
KVA Code:G
Max Ambient:40°C
Motor Orientation:Horizontal
Mounting Type:Rigid Base
NEMA Design:L
Number of Poles:4
Number of Speeds:1
ODE Bearing Size:6206
ODE Bearing Type:Ball
Outline Drawing Number:A-SS88686-1240
Phases:1
Power Factor:89
Power Rating (HP):10
Power Rating (kW):7.5
Resistance Main:0
Rotation:Selective Counterclockwise
Service Factor:1.15
Shaft Diameter (IN):1.375
Shaft Extension:3.47
Shaft Type:T
Speed:1730
Speed Max:1730
Starting Type:Across The Line
Type of Overload Protector:No
UL:Recognized
Voltage:208-230

Resources

Engineering DrawingSpec Sheet

Products Specifications

Brand Name
Marathon
Enclosure
Drip Proof
Frequency Rating
60
Horsepower
10 HP
Speed Rating
1730
Type
Capacitor Start Capacitor Run
Voltage Rating
208-230
