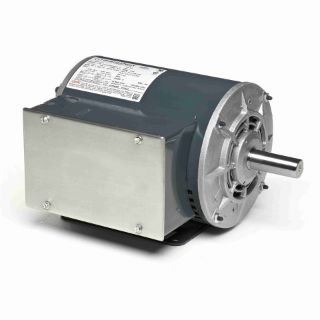

I117 MAR

Name: I117 MAR
Brand: Marathon Electric Motors
SKU: I117 MAR
Availability: OutOfStock

Actual Product May Vary From Image

Manufacturer:

Manufacturer part number:

I117

CBT Inventory

Vendor Inventory

Availability:

Expected Leadtime 10 days

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

213TCDW7026

Heavy gauge steel frame and base Capacitor start induction run design

Assembly/Box Mounting:	F1 ONLY
C Dim (IN):	18.05
CE:	Y
Connection Drawing Number:	A-EE7090JL
Country of Origin:	United States of America
CSA:	Y
Current:	30.5-28.0
DE Bearing Size:	6307
DE Bearing Type:	Ball
Duty:	Continuous
Efficiency:	78.5
Electrical Type:	Capacitor Start Induction Run
Enclosure Type:	Drip Proof
Frame Length (IN):	11.15
Frame Material:	Rolled Steel
Frame Size:	213
Frame Suffix:	T
Frame Type:	213T
Frequency:	60
Harmonized Tariff Code:	8501.40.6040
HP:	5
Insulation Class:	B
IP Code:	22
KVA Code:	H
Max Ambient:	40°C
Motor Orientation:	Horizontal
Mounting Type:	Rigid Base
NEMA Design:	L
Number of Poles:	4
Number of Speeds:	1
ODE Bearing Size:	6206
ODE Bearing Type:	Ball
Outline Drawing Number:	A-SS86561-1115
Phases:	1
Power Factor:	73
Power Rating (HP):	5
Power Rating (kW):	3.7
Resistance Main:	0
Rotation:	Selective Counterclockwise
Service Factor:	1.15
Shaft Diameter (IN):	1.375
Shaft Extension:	3.47
Shaft Type:	T
Speed:	1730
Speed Max:	1730
Starting Type:	Across The Line
Type of Overload Protector:	No
UL:	Recognized
Voltage:	208-230
