I141 MAR

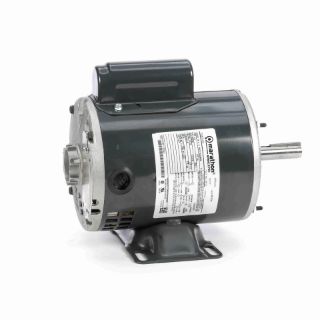

Picture of I141 MAR
Actual Product May Vary From Image

Product Details

Manufacturer:
Marathon Electric Motors
Manufacturer part number:
I141
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Expected Leadtime 10 days
Estimated dates are contingent upon manufacturer stock.
Price on Request

Description

Alternate Supplier #

182TCDR17079

Features

Heavy gauge steel frame and base Ball bearings (except as noted Economical split phase or capacitor start designs, as noted Service Factor, as noted UL Recognized and CSA Certified

Specifications

Assembly/Box Mounting:F1 ONLY
C Dim (IN):15.29
CE:Y
Connection Drawing Number:A-EE7085FP
Country of Origin:United States of America
CSA:Y
Current:15.0/7.5
DE Bearing Size:6206
DE Bearing Type:Ball
Duty:Continuous
Efficiency:68
Electrical Type:Capacitor Start Induction Run
Enclosure Type:Drip Proof
Frame Length (IN):8.25
Frame Material:Rolled Steel
Frame Size:182
Frame Suffix:T
Frame Type:182T
Frequency:60
Harmonized Tariff Code:8501.40.6040
HP:1
Insulation Class:B
IP Code:22
KVA Code:K
Max Ambient:40°C
Motor Orientation:Horizontal
Mounting Type:Rigid Base
NEMA Design:L
Number of Poles:6
Number of Speeds:1
ODE Bearing Size:6203
ODE Bearing Type:Ball
Outline Drawing Number:A-SS65665-825
Phases:1
Power Factor:61.5
Power Rating (HP):1
Power Rating (kW):0.75
Resistance Main:0
Rotation:Selective Counterclockwise
Service Factor:1.15
Shaft Diameter (IN):1.125
Shaft Extension:2.75
Shaft Type:T
Speed:1165
Speed Max:1165
Starting Type:Across The Line
Type of Overload Protector:No
UL:Recognized
Voltage:115/230

Resources

Spec Sheet

Products Specifications

Brand Name
Marathon
Enclosure
Drip Proof
Frequency Rating
60
Horsepower
1 HP
Speed Rating
1165
Type
Capacitor Start Induction Run
Voltage Rating
230
