I142 MAR

Name: I142 MAR
Brand: Marathon Electric Motors
SKU: I142 MAR
Availability: OutOfStock

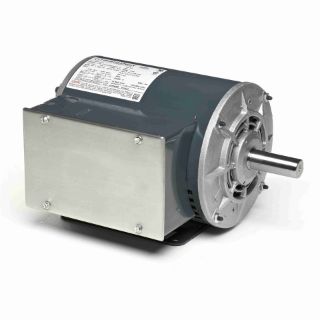

Actual Product May Vary From Image

Manufacturer:

Manufacturer part number:

I142

CBT Inventory

Vendor Inventory

Availability:

Expected Leadtime 10 days

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

184TCDR7076

Heavy gauge steel frame and base Capacitor start induction run design F1 mounting only, cannot reassemble to F2

Assembly/Box Mounting:	F1 ONLY
C Dim (IN):	15.79
CE:	Y
Connection Drawing Number:	A-EE7085FP
Country of Origin:	United States of America
CSA:	Y
Current:	23.0/11.5
DE Bearing Size:	6206
DE Bearing Type:	Ball
Duty:	Continuous
Efficiency:	68
Electrical Type:	Capacitor Start Induction Run
Enclosure Type:	Drip Proof
Frame Length (IN):	8.75
Frame Material:	Rolled Steel
Frame Size:	184
Frame Suffix:	T
Frame Type:	184T
Frequency:	60
Harmonized Tariff Code:	8501.40.6040
HP:	1.50
Insulation Class:	B
IP Code:	22
KVA Code:	K
Max Ambient:	40°C
Motor Orientation:	Horizontal
Mounting Type:	Rigid Base
NEMA Design:	L
Number of Poles:	6
Number of Speeds:	1
ODE Bearing Size:	6203
ODE Bearing Type:	Ball
Outline Drawing Number:	A-SS65665-875
Phases:	1
Power Factor:	59.4
Power Rating (HP):	1.50
Power Rating (kW):	1.1
Resistance Main:	1.2
Rotation:	Selective Clockwise
Service Factor:	1.15
Shaft Diameter (IN):	1.125
Shaft Extension:	2.75
Shaft Type:	T
Speed:	1160
Speed Max:	1160
Starting Type:	Across The Line
Type of Overload Protector:	No
UL:	Recognized
Voltage:	115/230
