I145 MAR

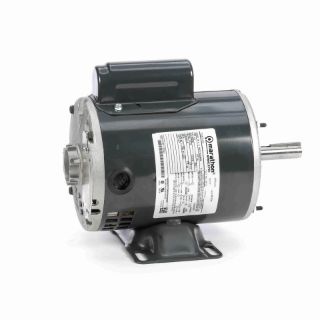

Picture of I145 MAR
Actual Product May Vary From Image

Product Details

Manufacturer:
Marathon Electric Motors
Manufacturer part number:
I145
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Expected Leadtime 10 days
Estimated dates are contingent upon manufacturer stock.
Price on Request

Description

Alternate Supplier #

145TBDR5303

Features

Heavy gauge steel frame and base Capacitor start/capacitor run design for reduced amperage

Specifications

Assembly/Box Mounting:F1 Only
C Dim (IN):12.49
CE:Y
Connection Drawing Number:102006-72
Country of Origin:United States of America
CSA:Y
Current:14.0-12.5
DE Bearing Size:6205
DE Bearing Type:Ball
Duty:Continuous
Efficiency:82.5
Electrical Type:Capacitor Start Capacitor Run
Enclosure Type:Drip Proof
Frame Length (IN):8.56
Frame Material:Rolled Steel
Frame Size:145
Frame Suffix:T
Frame Type:145T
Frequency:60
Harmonized Tariff Code:8501.40.6040
HP:3
Insulation Class:B
IP Code:22
KVA Code:G
Max Ambient:40°C
Motor Orientation:Horizontal
Mounting Type:Rigid Base
NEMA Design:No Design Code
Number of Poles:2
Number of Speeds:1
ODE Bearing Size:6203
ODE Bearing Type:Ball
Outline Drawing Number:B-100119-856
Phases:1
Power Factor:95.5
Power Rating (HP):3
Power Rating (kW):2.2
Resistance Main:0
Rotation:Selective Counterclockwise
Service Factor:1
Shaft Diameter (IN):0.875
Shaft Extension:2.25
Shaft Type:T
Speed:3480
Speed Max:3480
Starting Type:Across The Line
Type of Overload Protector:No
UL:Recognized
Voltage:208-230

Resources

Engineering DrawingSpec Sheet

Products Specifications

Brand Name
Marathon
Enclosure
Drip Proof
Frequency Rating
60
Horsepower
3 HP
Speed Rating
3480
Type
Capacitor Start Capacitor Run
Voltage Rating
208-230
