I200S FLU

Name: I200S FLU
Brand: Fluke
SKU: I200S FLU
Price: 354.99 USD
Availability: OutOfStock

Actual Product May Vary From Image

Product Details

Manufacturer:

Fluke

Manufacturer part number:

I200S

CBT Inventory

Vendor Inventory

Availability:

Expected Leadtime 8 days

Estimated dates are contingent upon manufacturer stock.

$354.99 / EA

Description

Brand Name

Fluke®

Type

AC Small Sized

Alternate Supplier #

Grainger - 4XL42

Description

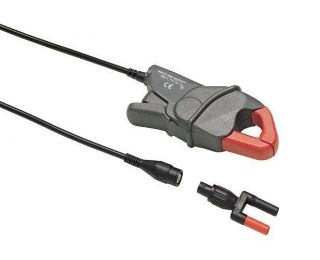

Fluke Current clamps are the ideal tools to extend the current ranges of Fluke tools. The i200s is a dual range 20A and 200A ac current clamp with voltage output via a safety insulated BNC connector. A dual banana to BNC adapter is supplied to allow the i200s to be connected to multimeters with banana inputs.

Fluke® Current Clamp, AC Small Sized, 20/200 A/600 VAC Electrical Rating, 40 Hz to 10 kHz Frequency, 1.5% + 0.5 A at 48 to 65 Hz AC Current Accuracy, Safety Rating: CAT III 600 VAC, 14 to 131 deg F Operating, 5.3 in L x 2 in W x 1.2 in H Dimensions

Standards

CE Marked | EN/IEC 61010-1/61010-02-032/50081-1/50082-2 | UL 61010B-1/61010B-2- 032

Features

Companion to your scope meter, power quality meter or digital multimeter to measure up to 200 A AC
Adapter for DMM's
Take accurate current readings without breaking the circuit
0.1 to 24 A/0.5 to 200 A continuous current
240 A maximum non-destructive current
0.1 A lowest measurable current
100 mV/A/10 mV/A output levels
20 mm maximum conductor diameter
20 x 5 mm maximum conductor size (busbar)
2 m output cable length
0.82 in jaw opening
2.7 in height of open jaws

Includes

BNC to Banana Adapter and BNC Adapter

Specifications

AC Current Accuracy:	1.5% + 0.5 A at 48 to 65 Hz
Country of Origin:	FR
Dimensions:	5.3 in L x 2 in W x 1.2 in H
Electrical Ratings:	20/200 A/600 VAC
Frequency Rating:	40 Hz to 10 kHz
Operating Temperature:	14 to 131 deg F
Safety Rating:	CAT III 600 VAC
