I205 MAR

Name: I205 MAR
Brand: Marathon Electric Motors
SKU: I205 MAR
Availability: OutOfStock

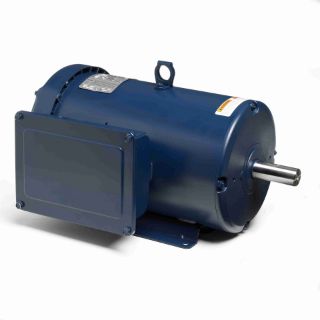

Actual Product May Vary From Image

Manufacturer:

Manufacturer part number:

I205

CBT Inventory

Vendor Inventory

Availability:

Expected Leadtime 10 days

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

145TBFR5302

Heavy gauge steel constructions Capacitor start/capacitor run design for reduced amperage Will accept flange kit, see accessory section

Assembly/Box Mounting:	F1 Only
C Dim (IN):	14.87
CE:	Y
Connection Drawing Number:	A-102006-74
Country of Origin:	United States of America
CSA:	Y
Current:	13.1-11.8
DE Bearing Size:	6205
DE Bearing Type:	Ball
Duty:	Continuous
Efficiency:	84
Electrical Type:	Capacitor Start Capacitor Run
Enclosure Type:	Totally Enclosed Fan Cooled
Frame Length (IN):	9.56
Frame Material:	Rolled Steel
Frame Size:	145
Frame Suffix:	T
Frame Type:	145T
Frequency:	60
Harmonized Tariff Code:	8501.40.6040
HP:	3
Insulation Class:	B
IP Code:	43
KVA Code:	H
Max Ambient:	40°C
Motor Orientation:	Horizontal
Mounting Type:	Rigid Base
NEMA Design:	L
Number of Poles:	2
Number of Speeds:	1
ODE Bearing Size:	6203
ODE Bearing Type:	Ball
Outline Drawing Number:	A-108681-956
Phases:	1
Power Factor:	99.2
Power Rating (HP):	3
Power Rating (kW):	2.2
Resistance Main:	0
Rotation:	Selective Counterclockwise
Service Factor:	1.15
Shaft Diameter (IN):	0.875
Shaft Extension:	2.25
Shaft Type:	T
Speed:	3510
Speed Max:	3510
Starting Type:	Across The Line
Type of Overload Protector:	Manual
UL:	Recognized ( Not Protector)
Voltage:	208-230
