I305 MAR

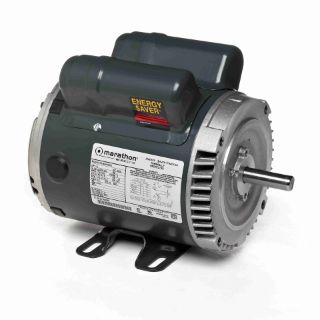

Picture of I305 MAR
Actual Product May Vary From Image

Product Details

Manufacturer:
Marathon Electric Motors
Manufacturer part number:
I305
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Expected Leadtime 10 days
Estimated dates are contingent upon manufacturer stock.
Price on Request

Description

Alternate Supplier #

184TBDR7628

Features

Shaft end mechanically locked on C-face models Heavy gauge steel constructions Capacitor start/capacitor run design for higher efficiency Continuous duty

Specifications

Assembly/Box Mounting:F1 ONLY
C Dim (IN):15.96
CE:Y
Connection Drawing Number:A-EE9048LZ
Country of Origin:United States of America
CSA:Y
Current:15.0-13.7
DE Bearing Size:6207
DE Bearing Type:Ball
Duty:Continous
Efficiency:82.5
Electrical Type:Capacitor Start Capacitor Run
Enclosure Type:Drip Proof
Frame Length (IN):8.25
Frame Material:Rolled Steel
Frame Size:184
Frame Suffix:TC
Frame Type:184TC
Frequency:60
Harmonized Tariff Code:8501.40.6040
HP:3
Insulation Class:B
IP Code:12
KVA Code:H
Max Ambient:40°C
Motor Orientation:Horizontal
Mounting Type:Rigid Base
NEMA Design:NO DESIGN CODE
Number of Poles:4
Number of Speeds:1
ODE Bearing Size:6205
ODE Bearing Type:Ball
Outline Drawing Number:A-SS67837-825
Phases:1
Power Factor:85.4
Power Rating (HP):3
Power Rating (kW):2.2
Resistance Main:0
Rotation:Selective Clockwise
Service Factor:1.15
Shaft Diameter (IN):1.125
Shaft Extension:2.62
Shaft Type:T
Speed:1750
Speed Max:1750
Starting Type:Across The Line
Type of Overload Protector:Manual
UL:Recognized ( Not Protector)
Voltage:208-230

Resources

Spec Sheet

Products Specifications

Brand Name
Marathon
Enclosure
Drip Proof
Frequency Rating
60
Horsepower
3 HP
Speed Rating
1750
Type
Capacitor Start Capacitor Run
Voltage Rating
208-230
