I308 MAR

Name: I308 MAR
Brand: Marathon Electric Motors
SKU: I308 MAR
Availability: OutOfStock

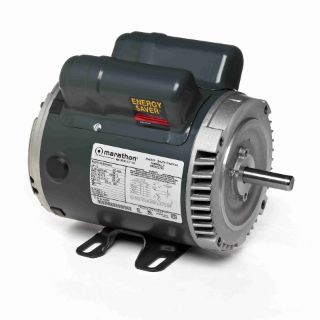

Actual Product May Vary From Image

Product Details

Manufacturer:

Marathon Electric Motors

Manufacturer part number:

I308

CBT Inventory

Vendor Inventory

Availability:

Expected Leadtime 10 days

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Alternate Supplier #

184TBDR7634

Features

Ball bearings, shaft end mechanically locked on C-face models Heavy gauge steel constructions Capacitor start/capacitor run design for higher efficiency Continuous duty, 1.15 Service Factor UL Recognized and CSA Certified

Specifications

Assembly/Box Mounting:	F1 ONLY
C Dim (IN):	16.96
CE:	Y
Connection Drawing Number:	A-EE9048LZ
Country of Origin:	United States of America
CSA:	Y
Current:	25.5-24.1
DE Bearing Size:	6207
DE Bearing Type:	Ball
Duty:	Continous
Efficiency:	81.5
Electrical Type:	Capacitor Start Capacitor Run
Enclosure Type:	Drip Proof
Frame Length (IN):	9.25
Frame Material:	Rolled Steel
Frame Size:	184
Frame Suffix:	TC
Frame Type:	184TC
Frequency:	60
Harmonized Tariff Code:	8501.40.6040
HP:	5
Insulation Class:	B
IP Code:	22
KVA Code:	H
Max Ambient:	40°C
Motor Orientation:	Horizontal
Mounting Type:	Rigid Base
NEMA Design:	NO DESIGN CODE
Number of Poles:	4
Number of Speeds:	1
ODE Bearing Size:	6205
ODE Bearing Type:	Ball
Outline Drawing Number:	A-SS67837-925
Phases:	1
Power Factor:	82.5
Power Rating (HP):	5
Power Rating (kW):	3.7
Resistance Main:	0
Rotation:	Selective Clockwise
Service Factor:	1.15
Shaft Diameter (IN):	1.125
Shaft Extension:	2.75
Shaft Type:	T
Speed:	1760
Speed Max:	1760
Starting Type:	Across The Line
Type of Overload Protector:	Manual
UL:	Recognized ( Not Protector)
Voltage:	208-230

Resources

Spec Sheet
