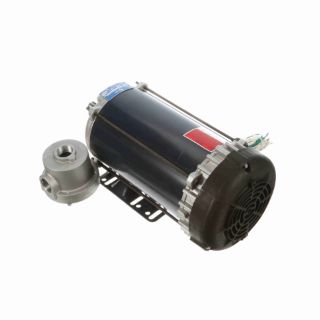

I512 MAR

Name: I512 MAR
Brand: Marathon Electric Motors
SKU: I512 MAR
Availability: OutOfStock

Actual Product May Vary From Image

Product Details

Manufacturer:

Marathon Electric Motors

Manufacturer part number:

I512

CBT Inventory

Vendor Inventory

Availability:

Expected Leadtime 10 days

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Alternate Supplier #

145TTGR16002

Features

Explosion proof Division 1, Class I Groups C & D, Class II Groups E,F, & G, Meets temperature code T3B Explosion proof conduit box included, shipped loose 1.15 service factor Normally closed thermostats installed UL listed file #E12044, CSA file #LR47504

Specifications

Assembly/Box Mounting:	F1 ONLY
C Dim (IN):	16.50
CE:	N
Connection Drawing Number:	A-EE7308T
Country of Origin:	United States of America
CSA:	N
Current:	5.0/2.5
DE Bearing Size:	6205
DE Bearing Type:	Ball
Duty:	Continuous
Efficiency:	85.5
Electrical Type:	Squirrel Cage Induction Run
Enclosure Type:	Explosion Proof Fan cooled
Frame Length (IN):	9.31
Frame Material:	Rolled Steel
Frame Size:	145
Frame Suffix:	T
Frame Type:	145T
Frequency:	60
Harmonized Tariff Code:	8501.52.4000
Hazardous Location:	EXP PROOF CL I GR C&D CL II GR E,F,G T3B
HP:	2
Insulation Class:	F
IP Code:	54
KVA Code:	K
Max Ambient:	40°C
Motor Orientation:	Horizontal
Mounting Type:	Rigid Base
NEMA Design:	B
Number of Poles:	2
Number of Speeds:	1
ODE Bearing Size:	6203
ODE Bearing Type:	Ball
Outline Drawing Number:	B-104585-931
Phases:	3
Power Factor:	86
Power Rating (HP):	2
Power Rating (kW):	1.5
Resistance Main:	7.1
Rotation:	Reversible
Service Factor:	1.15
Shaft Diameter (IN):	0.875
Shaft Extension:	2.31
Shaft Type:	T
Speed:	3500
Speed Max:	3500
Starting Type:	Across The Line
Type of Overload Protector:	Thermostats (N/C)
UL:	Recognized
Voltage:	230/460
