I702 MAR

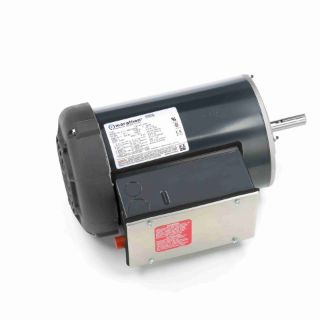

Picture of I702 MAR
Actual Product May Vary From Image

Product Details

Manufacturer:
Marathon Electric Motors
Manufacturer part number:
I702
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Expected Leadtime 10 days
Estimated dates are contingent upon manufacturer stock.
Price on Request

Description

Alternate Supplier #

145TBFR5336

Features

Shaft end mechanically locked on C-face models Heavy gauge steel constructions Capacitor start/capacitor run design for higher efficiency Continuous duty Manual reset thermal protector Will accept flange kit, see accessory section

Specifications

Assembly/Box Mounting:F3
C Dim (IN):14.87
CE:N
Connection Drawing Number:102006-52
Country of Origin:United States of America
CSA:Y
Current:18.8/9.4
DE Bearing Size:6205
DE Bearing Type:Ball
Duty:Continuous
Efficiency:81.5
Electrical Type:Capacitor Start Capacitor Run
Enclosure Type:Totally Enclosed Fan Cooled
Frame Material:Rolled Steel
Frame Size:145
Frame Suffix:T
Frame Type:145T
Frequency:60
Harmonized Tariff Code:8501.40.6040
HP:2
Insulation Class:B
IP Code:43
KVA Code:J
Max Ambient:40°C
Motor Orientation:Horizontal
Mounting Type:Rigid Base
NEMA Design:L
Number of Poles:4
Number of Speeds:1
ODE Bearing Size:6203
ODE Bearing Type:Ball
Outline Drawing Number:A-100294-956
Phases:1
Power Factor:86.1
Power Rating (HP):2
Power Rating (kW):1.5
Resistance Main:0
Rotation:Selective Counterclockwise
Service Factor:1.15
Shaft Diameter (IN):0.875
Shaft Extension:2.25
Shaft Type:T
Speed:1740
Speed Max:1740
Starting Type:Across The Line
Type of Overload Protector:Manual
UL:Recognized ( Not Protector)
Voltage:115/230

Resources

Engineering DrawingSpec Sheet
