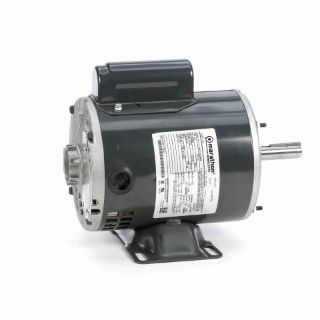

I707 MAR

Name: I707 MAR
Brand: Marathon Electric Motors
SKU: I707 MAR
Availability: OutOfStock

Actual Product May Vary From Image

Product Details

Manufacturer:

Marathon Electric Motors

Manufacturer part number:

I707

CBT Inventory

Vendor Inventory

Availability:

Expected Leadtime 10 days

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Alternate Supplier #

143TBFR5376

Features

Ball bearings Heavy gauge steel constructions Capacitor start/capacitor run design for reduced amperage Will accept flange kit, see accessory section 1.15 service factor UL recognized and CSA certified

Specifications

Assembly/Box Mounting:	F1 Only
C Dim (IN):	13.87
CE:	Y
Connection Drawing Number:	102006-51
Country of Origin:	United States of America
CSA:	Y
Current:	11.4/5.7
DE Bearing Size:	6205
DE Bearing Type:	Ball
Duty:	Continuous
Efficiency:	68
Electrical Type:	Capacitor Start Capacitor Run
Enclosure Type:	Totally Enclosed Fan Cooled
Frame Length (IN):	8.56
Frame Material:	Rolled Steel
Frame Size:	143
Frame Suffix:	T
Frame Type:	143T
Frequency:	60
Harmonized Tariff Code:	8501.40.4040
HP:	0.75
Insulation Class:	F
IP Code:	43
KVA Code:	L
Max Ambient:	40°C
Motor Orientation:	Horizontal
Mounting Type:	Rigid Base
NEMA Design:	L
Number of Poles:	6
Number of Speeds:	1
ODE Bearing Size:	6203
ODE Bearing Type:	Ball
Outline Drawing Number:	A-100116-856
Phases:	1
Power Factor:	65.4
Power Rating (HP):	0.75
Power Rating (kW):	0.56
Resistance Main:	0
Rotation:	Selective Counterclockwise
Service Factor:	1.15
Shaft Diameter (IN):	0.875
Shaft Extension:	2.28
Shaft Type:	T
Speed:	1160
Speed Max:	1160
Starting Type:	Across The Line
Type of Overload Protector:	No
UL:	Recognized
Voltage:	115/230
