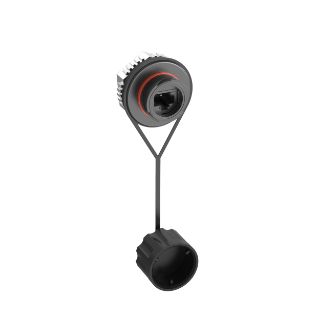

Actual Product May Vary From Image

IAEBHC5E PAN

Name: IAEBHC5E PAN
Brand: Panduit
SKU: IAEBHC5E PAN
Price: 54.98 USD
Availability: InStock

Panduit® IAEBHC5E Bulkhead UTP Coupler Module, Cat 5e RJ45 Module, Panel Mounting, (1) Ports, Copper, Black

Manufacturer: Panduit

Manufacturer part number: IAEBHC5E

Availability: Ships in 4-6 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	4	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

$54.98

Qty:

Product Details

Brand Name

Panduit®

Type

8-Pole 8-Wire TG Style Unshielded

Description

8-position, industrial connectors shall be applicable for use in manufacturing environments and shall meet/exceed the ANSI/TIA-568-C.2 standard for Cat 5e performance requirements. Bulkhead RJ45 jack and plug shall incorporate an IP67/68 rated seal and shall be designed to provide protection from dust and temporary immersion in water typically found in harsh industrial environments. Tethered protective cap shall ensure IP67/68 protection of the connector and plug in the unmated condition. Secondary seals on both the connector and plug shall provide an additional environmental barrier. Termination to a 4-pair 24 AWG 100 Ohm twisted pair cable shall not require the use of a punch down tool. An IP67/68 rating shall be achieved when mated with an IP67/68 and NEMA UL type 12/6/6P/4X industrial grade, bayonet style patch cord.

Panduit®, IAEBHC5E, Bulkhead UTP Coupler Module, Cat 5e RJ45 Module, Panel Mounting, 1 Ports, Copper, Black, 39.4 mm W x 33.4 mm D x 136.4 mm H Dimensions

Application

Harsh Industrial Environment Applications

Standards

Features

Bulkhead anti-rotation washer
Connector mounting nut holds bulkhead safely and securely from inside of enclosure
Robust construction plug contact plated with 50 micro inch of gold
Bayonet style interface provides positive reinforcement during mated condition, rated to 100 mating cycles
Protective cap maintains IP67/IP68 seal during unmated connection
Utilizes patented Giga-TX™ technology
Forward motion termination
Industry standard RJ45 interface
No punch down tool required
Universal wiring scheme
Standard mounting bulkhead connector fits into optional faceplate as well as standard IEC 1-13/64 in Dia mounting hole

Specifications

Color:	Black
Country of Origin:	US
Dimensions:	1.55 in W x 1.32 in D x 5.33 in H
Material:	Copper
Module Type:	Cat 5e Coupler RJ45/UTP Coupler Jack
Mounting Type:	Panel
Number of Ports:	1
