IAMLED67YBH APN

Name: IAMLED67YBH APN
Brand: Appleton
SKU: IAMLED67YBH APN
Availability: OutOfStock

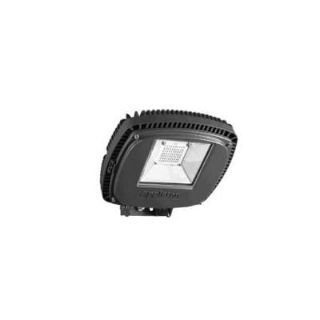

Actual Product May Vary From Image

Product Details

Manufacturer:

Appleton

Manufacturer part number:

IAMLED67YBH

CBT Inventory

Vendor Inventory

Availability:

Expected Leadtime 7 days

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Brand Name

Appleton®

Type

General Purpose

Description

Appleton® Industrial Areamaster™ Floodlight Fixture, General Purpose, 347/480 VAC, 250 W Fixture, 0.25 to 0.19 A, LED Lamp, 250 W Lamp, Mogul Lamp Base, Constant Wattage Autotransformer (CWA) Ballast, Glass Lens, Class H Insulation, NEMA 3R/4X/IP66/IP67 Enclosure, Aluminum Housing Material, Architectural Bronze Housing Finish, 14.1 in H x 15.3 in W x 3.7 in D Dimensions

Application

For security lighting, production facilities, warehouses, processing plants, storage areas, parking garages and lots

Standards

UL 1598/1598A | CSA C22.2 No. 250 | cCSAus 164460

Features

Compact in size, attractively styled contemporary design, rugged and dependable
Easy to install and service
One piece housing
One piece lens in hinged cover and secured by four M6 captive stainless steel slotted hex head bolts
Thermal shock and impact-resistant glass lens standard
Diffused polycarbonate lens available as an option
Heavy duty, high temperature silicone rubber gasket, mechanically secured
Universal design for flood and high bay mounting
Cool operating temperatures translate into long luminarie life
Available with a total of three (3) 3/4 in NPT entries with integral bushings
(2) 3/4 in NPT aluminum close-up plugs provided
Terminal block (screw type for secure connection) can accept 24 to 10 AWG and IEC 0.2 to 4 sq-mm
Metallized high reflectance reflector
Zinc plated steel yoke
Stainless steel bolts
50/60 Hz frequency
Suitable for use in wet locations

Specifications

Amperage Rating:	0.25 to 0.19 A
Ballast Type:	Constant Wattage Autotransformer (CWA)
Country of Origin:	US
Dimensions:	14.1 in H x 15.3 in W x 3.7 in D
Enclosure Type:	NEMA 3R/4X/IP66/IP67
Fixture Wattage:	250 W
Housing Finish:	Architectural Bronze
Housing Material:	Aluminum
Insulation Type:	Class H
Lamp Base Type:	Mogul
Lamp Type:	LED
Lamp Wattage:	250 W
Lens Type:	Glass
Voltage Rating:	347/480 VAC
