IDCSWDM3558 BLD

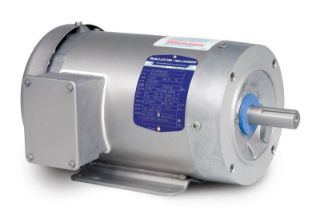

Picture of IDCSWDM3558 BLD
Actual Product May Vary From Image

Product Details

Manufacturer:
Baldor Reliance
Manufacturer part number:
IDCSWDM3558
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 1-3 days.
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$3,040.29 / EA

Description

Brand Name

Baldor-Reliance

Type

AC Motors

Application

Wash Down Paint Free

Features

2HP,1750RPM,3PH,60HZ,56C,3528M,TEFC,F1,N

Specifications

Base:Rigid
Country of Origin:US
Duty:Continuous
Enclosure:TEFC
Frame:56
Frequency Rating:60 Hz
Full Load Current:2.9 A; 5.8 A
Horsepower:2.000 hp
Insulation Class:H
Mounting:F1
NEMA Design:B
NEMA Nominal Efficincy:86.50%
Phase:Three Phase
Power Factor:75
Rotation:Reversible
Service Factor:1
Speed Rating:1,750 rpm
Voltage Rating:460 V; 230 V

Resources

Spec SheetWarranty

Products Specifications

Brand Name
Baldor-Reliance
Enclosure
TEFC
Frame
56C
Frequency Rating
60 Hz
Horsepower
2 HP
Speed Rating
1800 RPM
Type
Washdown Inverter/Vector
