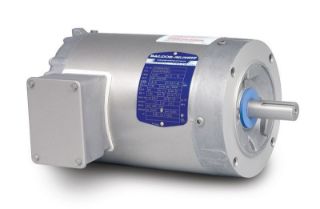

Picture of IDVSWDM3542 BLD
Actual Product May Vary From Image

IDVSWDM3542 BLD

.75HP,1740RPM,3PH,60HZ,56C,3519M,TENV,F1
Manufacturer: Baldor Reliance
Manufacturer part number: IDVSWDM3542
Availability: Ships in 1-3 days.
Estimated dates are contingent upon manufacturer stock.
CBT - Cincinnati CBT - Springboro CBT - Sidney
0 0 0
CRUSH BEARINGS & DRIVES - LEXINGTON CRUSH BEARINGS & DRIVES - LOUISVILLE
0 0
Loading...
$2,209.96

Product Details

Brand Name

Baldor-Reliance

Type

AC Motors

Application

Wash Down Paint Free

Features

.75HP,1740RPM,3PH,60HZ,56C,3519M,TENV,F1

Specifications

Base:No mounting
Country of Origin:US
Duty:Continuous
Enclosure:TENV
Frame:56
Frequency Rating:60 Hz
Full Load Current:1.1 A; 2.2 A
Horsepower:0.750 hp
Insulation Class:H
Mounting:F1
NEMA Design:B
NEMA Nominal Efficincy:82.50%
Phase:Three Phase
Power Factor:78
Rotation:Reversible
Service Factor:1
Speed Rating:1,740 rpm
Voltage Rating:460 V; 230 V
