IDXM7542T BLD

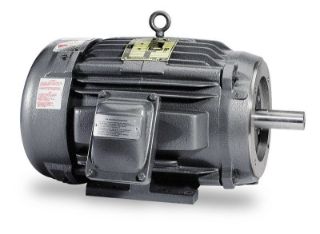

Picture of IDXM7542T BLD
Actual Product May Vary From Image

Product Details

Manufacturer:
Baldor Reliance
Manufacturer part number:
IDXM7542T
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 1-3 days.
Estimated dates are contingent upon manufacturer stock.
Price on Request

Description

Brand Name

Baldor-Reliance

Type

AC Motors

Application

Hazardous Location Motor

Features

3HP,1755RPM,3PH,60HZ,182TC,0632M,XPFC,F1

Specifications

Base:Rigid
Country of Origin:US
Duty:Continuous
Enclosure:XPFC
Frame:182
Frequency Rating:60 Hz
Full Load Current:4.1 A; 8.2 A
Horsepower:3.000 hp
Insulation Class:F
Mounting:F1
NEMA Design:B
NEMA Nominal Efficincy:89.50%
Phase:Three Phase
Power Factor:77
Rotation:Reversible
Service Factor:1
Speed Rating:1,755 rpm
Voltage Rating:230 V; 460 V

Resources

Spec SheetWarranty

Products Specifications

Brand Name
Baldor-Reliance
Enclosure
XPFC
Frame
182TC
Frequency Rating
60 Hz
Horsepower
3 HP
Speed Rating
1800 RPM
Type
Inverter/Vector
