IMLLEDS34J5BUF APN

Name: IMLLEDS34J5BUF APN
Brand: Appleton
SKU: IMLLEDS34J5BUF APN
Availability: OutOfStock

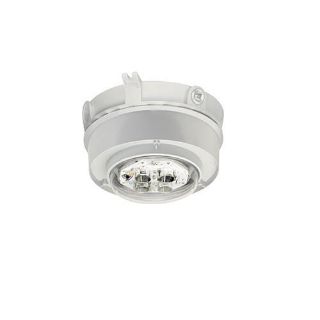

Actual Product May Vary From Image

Product Details

Manufacturer:

Appleton

Manufacturer part number:

IMLLEDS34J5BUF

CBT Inventory

Vendor Inventory

Availability:

Ships in 5-7 days.

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Brand Name

Appleton®

Type

Cylindrical Low Profile

Description

Appleton® Industrial Mercmaster™ Ordinary Location Lighting, Cylindrical Low Profile, Series: IMLLED, 120 to 277 VAC, 100 W Fixture, 0.29 to 0.13 A, LED Lamp, 35 W Lamp, 50 Lamps, 60000 hr Average Life, Painted Gray Light, 5700 K Color Temperature, >70 CRI, Prismatic Glass Lens, 3100 Lumens, NEMA 3R/4/4X/IP66 Enclosure, 25 deg Stanchion Mounting, Cast Copper Free Aluminum Housing Material, Baked Gray Epoxy Powder Coated Housing Finish, 15.27 in L x 12.06 in W x 13.3 in H Dimensions

Application

For general purpose lighting and heavy industrial locations where severe weather conditions, excessive moisture, dirt, dust, corrosive atmospheres, or high ambient temperatures are encountered, marine and wet locations, areas of low clearance, low ceiling heights or where fixture weights must be minimized

Standards

UL 50/50E | UL 1598 | UL 1598A | UL 8750 | CSA C22.2 No. 0 | C22.2 No. 94.1 | CSA 94.2 | C22.2 No. 60529 | C22.2 No. 250.0 | ANSI Specified | IEC 60529 | cULus E279986 | DLC Certified

Features

Compact lightweight low profile design is suited for low mounting heights
Six standard mounting hood designs allow for mounting in any location
Uses same mounting hoods as Mercmaster™ III
Customize to the application requirements with four different globe options, clear and diffused polycarbonate, clear glass, or prismatic glass refractor
Three light output levels for retrofit of HID fixtures up to 150 W
Hinge has high lip for added safety during installation and servicing
Hinge and bolt construction assures 360 deg compression at all points on fixture housing gasket for positive sealing
Swing away design of captive bolt and nut simplifies servicing
Standard NPT threads
-40 to 131 deg F ambient temperature
1-1/4 in NPT hub stanchion

Specifications

Amperage Rating:	0.29 to 0.13 A
Average Life:	60000 hr
Color Rendering Index (CRI):	>70
Color Temperature:	5700 K
Country of Origin:	MX
Dimensions:	15.27 in L x 12.06 in W x 13.3 in H
Enclosure Type:	NEMA 3R/4/4X/IP66
Fixture Wattage:	100 W
Housing Finish:	Baked Gray Epoxy Powder Coated
Housing Material:	Cast Copper Free Aluminum
Lamp Type:	LED
Lamp Wattage:	35 W
Lens Type:	Prismatic Glass
Light Color:	Painted Gray
Lumens:	3100 Lumens
Mounting Type:	25 deg Stanchion
Number of Lamps:	50
Series:	IMLLED
Voltage Rating:	120 to 277 VAC
