ISTPH6X1MTL PAN

Name: ISTPH6X1MTL PAN
Brand: Panduit
SKU: ISTPH6X1MTL PAN
Price: 72.88 USD
Availability: OutOfStock

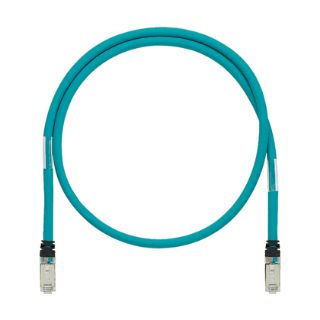

Panduit® IndustrialNet™ ISTPH6X1MTL Flame-Retardant Patch Cord With 7.4 mm Cable Jacket, Cat 6A, 26 AWG Shielded Twisted Pair SF/UTP Stranded Copper Conductor, 4-Pair RJ45 T568B 8-Position Modular Plug Connector, 1 m L Cord

Manufacturer: Panduit

Manufacturer part number: ISTPH6X1MTL

Availability: Ships in 4-6 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

$72.88

Qty:

Product Details

Brand Name

Panduit®

Type

Flame-Retardant

Description

The IndustrialNet™ Category 6A Shielded Patch Cord is constructed of industrial grade, 26 AWG, SF/UTP, twisted pair, stranded, CMR cable with industrial bulkhead modular plugs with black strain relief boots. It is designed to support high-flex applications and is rated for 600 V panel or on-machine applications where space is shared with high voltage power cables. The patch cord is 1 m in length and teal.

Panduit® IndustrialNet™ Patch Cord, Flame-Retardant, Category: Cat 6A, 26 AWG Conductor, Shielded Twisted Pair SF/UTP Stranded Copper Conductor, 4-Pair RJ45 T568B 8-Position Modular Plug Connector, 1 m Cord, 600 V, TPE Jacket, Teal Jacket, 14 to 140 deg F

Application

10BASE-T (Ethernet), 100Base-T (Fast Ethernet), 1000Base-T (Gigabit Ethernet), Industrial Ethernet, Ethernet/IP, Control Panel Deployments Featuring Power Source Voltages, High Flex Applications Robotic, C-Track and Industrial Applications

Standards

Features

Robust 600 V rated construction - allows for patch runs between automation devices in industrial environments, rated for 600 V panel or on-machine applications when the space is shared with high voltage power cables, plug contact plated with 50 micro inches of gold
100% performance tested for wire map, next and return loss - factory testing provides confidence that each patch cord delivers specified performance
Centered de-embedded plug - performs in center of ANSI/TIA-568-C.2 component range, ensuring interoperability and optimum performance
Integral pair manager - optimizes performance and consistency by reducing untwist at the plug
Flexible stranded cable - 26 AWG stranded copper cable with a nominal diameter of 7.4 mm (0.29 in) allows for high density applications and superior panel cable management
Identification provides for future traceability - identification of performance level, length and quality control number is provided on each cord

Specifications

Category Type:	Cat 6A
Conductor Size:	26 AWG
Conductor Type:	Shielded Twisted Pair SF/UTP Stranded Copper
Connector Type:	4-Pair RJ45 T568B 8-Position Modular Plug
Cord Length:	1 m
Country of Origin:	CR
Jacket Color:	Teal
Jacket Material:	TPE
Temperature Rating:	14 to 140 deg F
Voltage Rating:	600 V
