ISTPHCH4.5MGY PAN

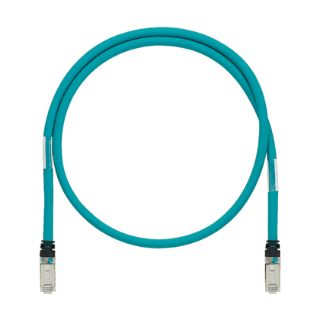

Picture of ISTPHCH4.5MGY PAN
Actual Product May Vary From Image

Product Details

Manufacturer:
Panduit
Manufacturer part number:
ISTPHCH4.5MGY
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 4-6 days.
Estimated dates are contingent upon manufacturer stock.
Price on Request

Description

Brand Name

Panduit®

Type

SF/UTP CM/CMX

Description

Industrial patch cords shall be constructed of Category 5E, industrial grade, 24 AWG stranded, twisted 4-pair shielded SF/UTP cable with a flame retardant (CM) thermoplastic elastomer (TPE) jacket. Patch cord cable shall be offered in multiple colors and lengths for design flexibility. Each patch cord shall be pre-terminated to include Category 5E RJ45 shielded modular plugs on each end, with a black strain relief boot and wired according to the T568A standard. Each patch cord is designed to support high-flex applications and is rated for 600 VAC panel or on machine applications when the space is shared with high voltage power cables.
Panduit® IndustrialNet™ Patch Cord, Category: Cat 5e, 24 AWG Conductor, SF/UTP Copper Conductor, Modular Plug Connector, 4.5 m Cord Length, Thermoplastic Elastomer Jacket, Gray, 158 deg F

Application

10BASE-T Ethernet, 100BASE-T Fast Ethernet, 1000BASE-T Gigabit Ethernet, Industrial Ethernet, Ethernet/IP, Control Panel Deployments Featuring Power Source Voltages, Uplinks Featuring Gigabit Data Transmission From The Control Panel to the Consolidation Point and Uplinks

Standards

ANSI/TIA-968-A | ARRA Compliant | Buy American Act Compliant | CE Certified | IEC 60603-7 | IEEE 802.3af/802.3at | IP20 Rated | PoE Compliant | RoHS Compliant | TIA-568-C.2 | UL 1685/1863 | UL AWM Style 2463

Features

  • 100% performance tested for wire map, next and return loss
  • Centered de-embedded plug
  • Integral pair manager
  • Patented tangle free latch
  • Smaller diameter, flexible cable design
  • Robust construction

Specifications

Category Type:Cat 5e
Color:Gray
Conductor Size:24 AWG
Conductor Type:SF/UTP Copper
Connector Type:Modular Plug
Cord Length:4.5 m
Country of Origin:CR
Jacket Color:Gray
Jacket Material:Thermoplastic Elastomer
Temperature Rating:-4 to 158 deg F
Voltage Rating:600 VAC
