IUTP6X5MBL PAN

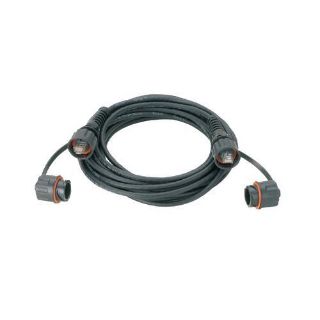

Picture of IUTP6X5MBL PAN
Actual Product May Vary From Image

Product Details

Manufacturer:
Panduit
Manufacturer part number:
IUTP6X5MBL
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 4-6 days.
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$259.58 / EA

Description

Brand Name

Panduit®

Type

U/UTP

Description

Industrial Ethernet patch cords shall be constructed of Category 6A, industrial grade, stranded, twisted pair cable for UTP and STP installations. Each patch cord shall be pre-terminated to include Category 6A industrial plugs on each end which are wired according to the T568B standard. Patch cords shall include either industrial rated IP65/IP67 bulkhead connectors on both ends or an industrial rated IP65/IP67 bulkhead connector on one end with an IP20 rated RJ45 connector at the other end. Tethered caps shall be available on the bulkhead connectors to protect connectivity in un-mated conditions. An IP65/IP67 rating shall be achieved when mated with an IP65/IP67 and NEMA UL type 12 industrial grade, bayonet style connector.
Panduit® IndustrialNet™ TX6A™ Patch Cord, Category: Cat 6A, 24 AWG Conductor, U/UTP Copper Conductor, Modular Plug Connector, 5 m Cord Length, Black, 158 deg F

Application

For industrial ethernet from the local area network (LAN) based support offices to the processing devices on the plant floor even under harsh industrial conditions, innovative design features provide a secure, reliable connection for superior data transmission in work cells where moisture and dust/ particles are encountered, in temperature extremes and in applications with vibration

Standards

ANSI/TIA-1096-A | ANSI/TIA-568-C.2 Cat 6a | ARRA Compliant | Buy American Act Compliant | IEC 60603-7/61076-3-106 | IEEE 802.3af/802.3at | NEMA IP65/IP67 | RoHS Compliant | UL Listed

Features

  • 100% performance tested for wire map, next and return loss
  • Centered de-embedded plug
  • Integral pair manager
  • Patented tangle free latch
  • Smaller diameter, flexible cable design
  • Robust construction

Specifications

Category Type:Cat 6A
Color:Black
Conductor Size:24 AWG
Conductor Type:Stranded Copper
Connector Type:Modular Plug
Cord Length:5 m
Country of Origin:CR
Jacket Color:Black
Temperature Rating:-4 to 158 deg F
