J 3 3/8 MSG

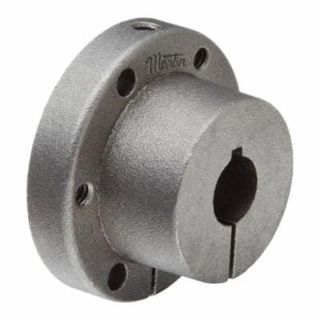

Picture of J 3 3/8 MSG
Actual Product May Vary From Image

Product Details

Manufacturer:
Martin Sprocket & Gear
Manufacturer part number:
J 3 3/8
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Expected Leadtime 4 days
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$309.59 / EA

Description

Brand Name

Martin

Type

Standard

Description

QD (quick detachable) bushings are designed for conventional mounting or reverse mounting. These bushings have a flange.
Martin QD Bushing, Standard, 3-3/8 in Bore Dia, 5.148 in Barrel Dia, 9 in Hub Dia, 6-1/4 in Bolt Circle, 7-1/4 in Flange Dia, 1 in Flange Thickness, 3 Bolt Holes, 5/8-11 x 4-1/2 in Screw, 45000 in-lb, 4-1/2 in Overall Length, 7/16 x 7/8 in Keyway, Cast Iron

Features

  • Size J bushing
  • QD (quick detachable) bushings are designed for conventional mounting or reverse mounting
  • These bushings have a flange
  • Precise machining and processes ensure consistent finish and high quality
  • Interchangeable with other manufacturers’ QD bushings

Specifications

Barrel Diameter:5.148 in
Bolt Circle Diameter:6-1/4 in
Bore Diameter:3-3/8 in
Country of Origin:US
Flange Diameter:7-1/4 in
Flange Thickness:1 in
Hub Diameter:9 in
Keyway Size:7/16 x 7/8 in
Material:Cast Iron
Number of Bolt Holes:3
Overall Length:4-1/2 in
Screw Size:5/8-11 x 4-1/2 in
Torque Rating:45000 in-lb

Products Specifications

Bore Size
3-3/8"
Brand Name
Martin Sprocket & Gear
Bushing Series
J
Measuring Units
Inch
Type
QD® Bushing
