J025 MAR

Name: J025 MAR
Brand: Marathon Electric Motors
SKU: J025 MAR
Availability: OutOfStock

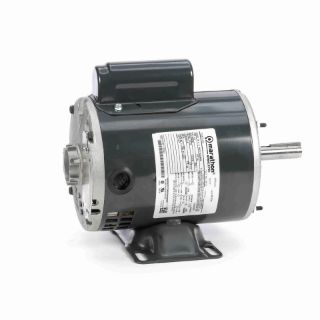

Actual Product May Vary From Image

Product Details

Manufacturer:

Marathon Electric Motors

Manufacturer part number:

J025

CBT Inventory

Vendor Inventory

Availability:

Expected Leadtime 10 days

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Alternate Supplier #

056C34D2111

Features

Service Factor, as noted Double sealed ball bearings, mechanically locked on shaft end Capacitor start design for high starting torque Capacitor start/capacitor run design for higher efficiency, as noted Fixed CW rotation, viewed opposite shaft end Automatic reset thermal protector 56C = carbon steel shaft with key, drip cover not included 56J = 416 stainless steel threaded shaft with slinger, drip cover included UL Recognized and CSA Certified

Specifications

Assembly/Box Mounting:	F1 Only
C Dim (IN):	10.44
CE:	N
Connection Drawing Number:	A-EE9002V
Country of Origin:	Mexico
CSA:	Y
Current:	5.6/2.7-2.8
DE Bearing Size:	6203
DE Bearing Type:	BALL
Duty:	CONTINUOUS
Efficiency:	63
Electrical Type:	CAP START IND RUN
Enclosure Type:	DP
Frame Material:	ROLLED STEEL
Frame Size:	56
Frame Suffix:	C
Frame Type:	56C
Frequency:	60
HP:	0.33
Insulation Class:	B
IP Code:	22
KVA Code:	L
Max Ambient:	40°C
Motor Orientation:	HORIZONTAL
Mounting Type:	ROUND
NEMA Design:	No Design Code
Number of Poles:	2
Number of Speeds:	0
ODE Bearing Size:	6203
ODE Bearing Type:	BALL
Outline Drawing Number:	A-SS75606-650
Phases:	1
Power Rating (HP):	0.33
Power Rating (kW):	0.25
Resistance Main:	0
Rotation:	SELECTIVE CCW
Service Factor:	1.75
Shaft Diameter (IN):	0.63
Shaft Extension:	1.88
Shaft Type:	T
Speed:	3450
Speed Max:	3450
Starting Type:	ACROSS THE LINE
Type of Overload Protector:	AUTOMATIC
UL:	Recognized
Voltage:	115/208-230
