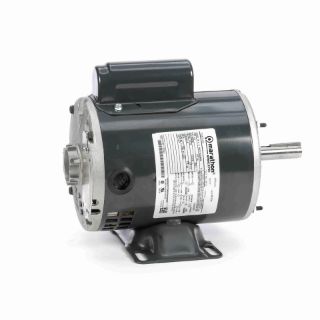

J038 MAR

Name: J038 MAR
Brand: Marathon Electric Motors
SKU: J038 MAR
Availability: OutOfStock

Actual Product May Vary From Image

Product Details

Manufacturer:

Marathon Electric Motors

Manufacturer part number:

J038

CBT Inventory

Vendor Inventory

Availability:

Expected Leadtime 10 days

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Alternate Supplier #

056B34D5326

Features

Service Factor, as noted Double sealed ball bearings, mechanically locked on shaft end Capacitor start/capacitor run design for higher efficiency, as noted Fixed CW rotation, viewed opposite shaft end Automatic reset thermal protector 56C = carbon steel shaft with key 56J = 416 stainless steel threaded shaft with slinger Drip cover not included, see Accessories Section UL Recognized and CSA Certified

Specifications

Assembly/Box Mounting:	F1 Only
C Dim (IN):	12.24
CE:	Y
Connection Drawing Number:	102006-17
Country of Origin:	United States of America
CSA:	Y
Current:	18.2/9.8-9.1
DE Bearing Size:	6203
DE Bearing Type:	BALL
Duty:	CONTINUOUS
Efficiency:	80
Electrical Type:	CAP START CAP RUN
Enclosure Type:	DP
Frame Length (IN):	7.56
Frame Material:	ROLLED STEEL
Frame Size:	56
Frame Suffix:	J
Frame Type:	56J
Frequency:	60
HP:	2
Insulation Class:	B
IP Code:	22
KVA Code:	F
Max Ambient:	40°C
Motor Orientation:	HORIZONTAL
Mounting Type:	ROUND
NEMA Design:	No Design Code
Number of Poles:	2
Number of Speeds:	0
ODE Bearing Size:	6203
ODE Bearing Type:	BALL
Outline Drawing Number:	A-100332-756
Phases:	1
Power Factor:	87.5
Power Rating (HP):	2
Power Rating (kW):	1.49
Resistance Main:	0
Rotation:	FIXED CW
Service Factor:	1.2
Shaft Diameter (IN):	0.63
Shaft Extension:	2.57
Shaft Type:	JET PUMP
Speed:	3450
Speed Max:	3450
Starting Type:	ACROSS THE LINE
Type of Overload Protector:	AUTOMATIC
UL:	Recognized
Voltage:	115/208-230

Resources

Spec Sheet
