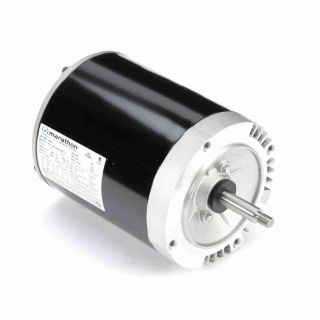

J042 MAR

Name: J042 MAR
Brand: Marathon Electric Motors
SKU: J042 MAR
Availability: OutOfStock

Actual Product May Vary From Image

Product Details

Manufacturer:

Marathon Electric Motors

Manufacturer part number:

J042

CBT Inventory

Vendor Inventory

Availability:

Expected Leadtime 10 days

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Alternate Supplier #

056T34D5349

Features

Service Factor, as noted Double sealed ball bearings, mechanically locked on shaft end Continuous Duty Nameplated 60/50 hertz, 190/380 volts at next lower HP, as noted 56C = carbon steel shaft with key 56J = 416 stainless steel threaded shaft with slinger UL Recognized and CSA Certified Drip cover not included, see Accessories section Drip cover is included

Specifications

Assembly/Box Mounting:	F1 Only
C Dim (IN):	10.94
CE:	Y
Connection Drawing Number:	A-EE7308
Country of Origin:	Mexico
CSA:	Y
Current:	3.2/1.6
DE Bearing Size:	6203
DE Bearing Type:	BALL
Duty:	CONTINUOUS
Efficiency:	74
Electrical Type:	SQ CAGE IND RUN
Enclosure Type:	DP
Frame Length (IN):	6.56
Frame Material:	ROLLED STEEL
Frame Size:	56
Frame Suffix:	J
Frame Type:	56J
Frequency:	60
HP:	0.75
Insulation Class:	B
IP Code:	22
KVA Code:	N
Max Ambient:	40°C
Motor Orientation:	HORIZONTAL
Mounting Type:	ROUND
NEMA Design:	B
Number of Poles:	2
Number of Speeds:	0
ODE Bearing Size:	6203
ODE Bearing Type:	BALL
Outline Drawing Number:	A-100351-656
Phases:	3
Power Factor:	69
Power Rating (HP):	0.75
Power Rating (kW):	0.56
Rotation:	REV
Service Factor:	1.5
Shaft Diameter (IN):	0.63
Shaft Extension:	2.57
Shaft Type:	JET PUMP
Speed:	3450
Speed Max:	3450
Starting Type:	ACROSS THE LINE
Type of Overload Protector:	NONE
UL:	Recognized
Voltage:	230/460
