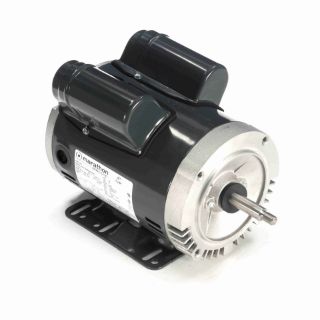

J059 MAR

Name: J059 MAR
Brand: Marathon Electric Motors
SKU: J059 MAR
Availability: OutOfStock

Actual Product May Vary From Image

Product Details

Manufacturer:

Marathon Electric Motors

Manufacturer part number:

J059

CBT Inventory

Vendor Inventory

Availability:

Expected Leadtime 10 days

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Alternate Supplier #

056B34D5341

Features

Double sealed ball bearings, mechanically locked on shaft end Capacitor start/capacitor run design for higher efficiency Drip cover not included, see Accessories Section Automatic reset thermal protector 56C = carbon steel shaft with key 56J = 416 stainless steel threaded shaft with slinger

Specifications

Assembly/Box Mounting:	F1 ONLY
C Dim (IN):	11.94
CE:	Y
Connection Drawing Number:	102006-17
Country of Origin:	Mexico
CSA:	Y
Current:	18.2/9.8-9.1
DE Bearing Size:	6203
DE Bearing Type:	Ball
Duty:	Continuous
Efficiency:	80
Electrical Type:	Capacitor Start Capacitor Run
Enclosure Type:	Drip Proof
Frame Length (IN):	7.56
Frame Material:	Rolled Steel
Frame Size:	56
Frame Suffix:	J
Frame Type:	56J
Frequency:	60
Harmonized Tariff Code:	8501.40.6040
HP:	2
Insulation Class:	B
IP Code:	22
KVA Code:	F
Max Ambient:	40°C
Motor Orientation:	Horizontal Or Shaft Down
Mounting Type:	Rigid Base
NEMA Design:	NO DESIGN CODE
Number of Poles:	2
Number of Speeds:	1
ODE Bearing Size:	6203
ODE Bearing Type:	Ball
Outline Drawing Number:	A-100776-756
Phases:	1
Power Factor:	87.5
Power Rating (HP):	2
Power Rating (kW):	1.5
Resistance Main:	0
Rotation:	Fixed Clockwise
Service Factor:	1.2
Shaft Diameter (IN):	0.625
Shaft Extension:	2.57
Shaft Type:	J
Speed:	3450
Speed Max:	3450
Starting Type:	Across The Line
Type of Overload Protector:	Automatic
UL:	Recognized ( Not Protector)
Voltage:	115/208-230
