J230054 FER

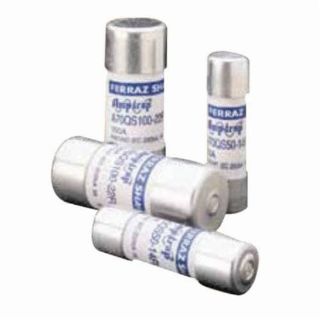

Picture of J230054 FER
Actual Product May Vary From Image

Product Details

Manufacturer:
Mersen
Manufacturer part number:
J230054
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Expected Leadtime 50 days
Estimated dates are contingent upon manufacturer stock.
Price on Request

Description

Brand Name

Mersen

Type

High Speed

Description

These Premium Amp-Trap® French cylindrical semiconductor fuses are an extension of the popular A7OQS product line. They are solid fill 14 mm and 22 mm fuses, IEC rated 690 VAC, 200 kA Interrupting and 700 VDC, 100 kA interrupting at 10 ms time constant. In addition, these fuses have an 890 VDC rating for capacitor discharge applications up to 2.5 ms time constant. All ampere ratings are available with a striker. Applications include small inverter drives and UPS systems, with superior I2T for improved protection and performance.
Mersen Amp-Trap® Semiconductor Fuse, High Speed, Series: A70QS, 70 A, 700 VAC/690 VDC, 100/200 kA Interrupt, 2.5 ms Response, Ferrule Terminal, Cylindrical Body, 22 mm Dia x 58 mm L Body

Application

For protection of AC/DC drive, UPS and other equipment of 300 V or less

Standards

RoHS Compliant | UL Guide JFHR8/E60314

Features

  • Low I2T minimizes damage to protected components on short circuit
  • Controlled arc voltage reduces stress to circuit components during fuse clearing
  • Choice of mounting types provides options for unique termination requirements
  • North American round style
  • With striker

Specifications

Amperage Rating:70 A
Body Size:22 mm Dia x 58 mm L
Body Type:Cylindrical
Country of Origin:TN
Interrupt Rating:100/200 kA
Response Time:2.5 ms
Series:A70QS
Terminal Type:Ferrule
Voltage Rating:700 VAC/690 VDC
