J318-412-2M PAN

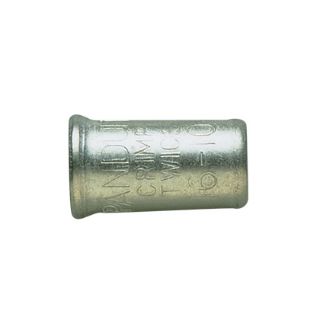

Picture of J318-412-2M PAN
Actual Product May Vary From Image

Product Details

Manufacturer:
Panduit
Manufacturer part number:
J318-412-2M
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 4-6 days.
Estimated dates are contingent upon manufacturer stock.
Price on Request

Description

Brand Name

Panduit®

Type

Non-Insulated

Description

Panduit®, J318-412-2M, Wire Joint, Non-Insulated, Series: J Series, 2000 VAC, 1 to 4 sq-mm Wire, 0.37 in Length, 1/2 in Wire Strip Length, 302 deg F, For Use With: CT-100A, CT-200 Crimping Tool, Specifications: 0.07 in Stock, Steel, Metallic, Copper Coated/Tin Plated, 0.21 in ID x 0.31 in OD Dimensions

Standards

ARRA Compliant | Buy American Act Compliant | CSA C22.2 No. 65 File No. LR31212 | RoHS Compliant | UL 486C | UL 587H | UL Listed File No. E52164

Features

  • Large barrel, designed to accommodate from one to seven wires with just one crimp
  • Accommodates multiple wire sizes in varying combinations
  • Barrel of terminal internally beveled to provide quick and easy wire insertion
  • Non-insulated barrel can be used to provide an economical termination when insulation is not required

Specifications

Color:Metallic
Country of Origin:MX
Dimensions:0.21 in ID x 0.31 in OD
Finish:Copper Coated/TiN Coated
Length:0.37 in
Material:Steel
Series:J Series
Specifications:0.07 in Stock
Suitable For Use With:CT-100A and CT-200 Crimping Tools
Temperature Rating:302 deg F
Voltage Rating:2000 VAC
Wire Size:1 to 4 sq-mm
Wire Strip Length:1/2 in
