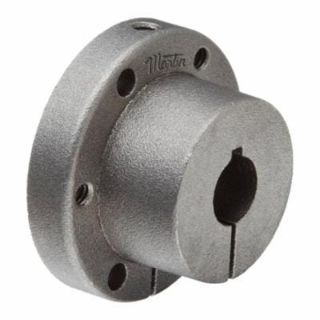

Actual Product May Vary From Image

JA 1 1/4 MSG

Name: JA 1 1/4 MSG
Brand: Martin Sprocket & Gear
SKU: JA 1 1/4 MSG
Price: 18.70 USD
Availability: InStock

Martin JA 1 1/4 Standard QD Bushing, 1-1/4 in Dia Bore, 1-3/8 in Dia Barrel, 2 in Dia Flange, 1.063 in OAL, Cast Iron

Manufacturer: Martin Sprocket & Gear

Manufacturer part number: JA 1 1/4

Availability: Ships in 2-4 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
1	2	2
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

$18.70

Qty:

Product Details

Brand Name

Martin

Type

Standard

Description

Martin QD Bushing, Standard, 1-1/4 in Bore Dia, 1-3/8 in Barrel Dia, 3.93 in Hub Dia, 1.656 in Bolt Circle, 2 in Flange Dia, 3/8 in Flange Thickness, 3 Bolt Holes, #10-24 x 1 in Screw, 1000 in-lb, 1.063 in Overall Length, Cast Iron

Features

Size JA bushing
QD (quick detachable) bushings are designed for conventional mounting or reverse mounting
These bushings have a flange

Specifications

Barrel Diameter:	1-3/8 in
Bolt Circle Diameter:	1.656 in
Bore Diameter:	1-1/4 in
Country of Origin:	US
Flange Diameter:	2 in
Flange Thickness:	3/8 in
Hub Diameter:	3.93 in
Material:	Cast Iron
Number of Bolt Holes:	3
Overall Length:	1.063 in
Screw Size:	#10-24 x 1 in
Torque Rating:	1000 in-lb
