JD16/25-85B RUL

Name: JD16/25-85B RUL
Brand: Ruland Manufacturing
SKU: JD16/25-85B RUL
Price: 20.41 USD
Availability: OutOfStock

Actual Product May Vary From Image

Product Details

Manufacturers:

Ruland Manufacturing , Ruland Manufacturing , Ruland Manufacturing

Manufacturer part number:

JD16/25-85B

CBT Inventory

Vendor Inventory

Availability:

1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

$20.41 / EA

Description

Type

Jaw Coupling

Description

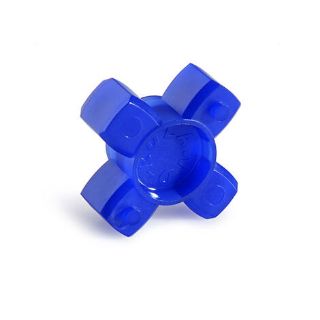

Ruland zero-backlash jaw couplings are lightweight, have low inertia, and have high dampening capabilities for use in applications with hard starts and stops such as optical inspection systems. This 85 Shore A spider is a component in a three piece design which mates it to two aluminum hubs. It can be used with any hub that has an OD of 1.000" (25.4mm). This spider is made from polyurethane and has 85 Shore A hardness for the highest level of compliance with limited torque capabilities. The complete coupling has a balanced design and can accommodate speeds of up to 8,000 RPM. This jaw coupling spider is RoHS and REACH compliant.

Note

Performance ratings are for guidance only. The user must determine suitability for a particular application.

Specifications

Angular Misalignment:	1.0 deg
Axial Motion:	0.030 in (0.76 mm)
Conflict Minerals:	Compliant
Country of Origin:	US
ISO 9001:2015:	ISO 9001:2015 Certified
Manufacturer:	Ruland Manufacturing
Material Specification:	Polyurethane 85 Shore A
Maximum Speed:	8000 RPM
Note 2:	Torque ratings for the couplings are based on the physical limitations/failure point of the spiders. Under normal/typical conditions the hubs are capable of holding up to the nominal torque of the spiders. In some cases, especially when the smallest standard bores are used or where shafts are undersized, slippage on the shaft is possible below the nominal torque of the spiders. Keyways are available to provide additional torque capacity in the shaft/hub connection when required. Please consult technical support for more assistance.
Outer Diameter (OD):	1.000 in (25.4 mm)
Parallel Misalignment:	0.006 in (0.15 mm)
Peak Torque:	30 lb-in (3.4 Nm)
Prop 65:	This product does not require a warning.
Rated Torque:	15 in-lb (1.70 Nm)
REACH:	Compliant
RoHS3:	Compliant
Tariff Code:	8483.60.8000
Temperature:	-10°F to 180°F (-23°C to 82°C)
Torsional Stiffness:	9.3 lb-in/Deg (1.05 Nm/Deg)
Unit of Measurement:	Inch/Metric
