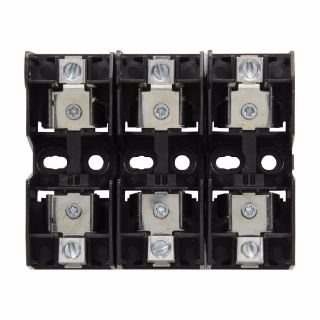

Actual Product May Vary From Image

JM60060-3CR BSF

Name: JM60060-3CR BSF
Brand: Bussmann
SKU: JM60060-3CR BSF
Price: 323.09 USD
Availability: OutOfStock

Bussmann JM60060-3CR Modular Fuse Block, 600 V, 35 to 60 A, Class: J, 14 to 2 AWG Cu, 8 to 2 AWG Al Wire, 3 Poles

Manufacturer: Bussmann

Manufacturer part number: JM60060-3CR

Availability: Expected Leadtime 35 days

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON
0
Loading...

$323.09

Qty:

Product Details

Brand Name

Bussmann

Type

Modular

Alternate Supplier #

Grainger - 40LG97

Description

Class J modular fuse blocks enhance safety for any panel or electrical system design and are available for the full class J fuse amp range. All blocks are available as 1-pole versions that snap together at point of use or as factory configured 2 and 3-pole versions. All blocks are equipped with a fuse clip reinforcing spring to minimize temperature rise while maintaining reliable surface contact between the fuse and clip over the block's service life.

Bussmann Fuse Block, Modular, Series: JM Series, 600 V, 35 to 60 A, 3 Pole, Class: J, Box Lug/Slot Screw, 14 to 2 AWG Cu, 8 to 2 AWG Al Wire, DIN Rail/Panel Mount, 2.38 in Fuse Length, 1.06 in Fuse Dia, -40 to 120 deg C, For Use With: Low-Peak™ LPJ Series Time Delay, Limitron™ JKS, DFJ Series Ferrule Fuse, Thermoplastic, 4.7 in L x 4.5 in W x 2.6 in H

Application

Electrical Assemblies, Panels and EOEMs Applications

Standards

CE Certified | CSA File No.47235 Guide IZLT | RoHS Compliant | UL File No.E14853

Features

To reduce inventory, assembly time and labor, modular 1-pole blocks snap together for toolless assembly of multiple poles at point of use
DIN rail and panel mount versatility allows one product to be used for multiple applications with lower inventory cost
Save panel space with the smallest width dimension on the market
Easy circuit identification with available universal marker labels for blocks and covers

Specifications

Amperage Rating:	35 to 60 A
Class:	J
Connection Type:	Box Lug/Slot Screw
Dimensions:	4.7 in L x 4.5 in W x 2.6 in H
Fuse Diameter:	1.06 in
Fuse Length:	2.38 in
Material:	Thermoplastic
Mounting Type:	DIN Rail/Panel
Number of Poles:	3
Series:	JM Series
Suitable For Use With:	Low-Peak™ LPJ Series Time Delay, Limitron™ JKS, DFJ Series Ferrule Fuse
Temperature Rating:	-40 to 120 deg C
Voltage Rating:	600 V
Wire Size:	14 to 2 AWG Cu, 8 to 2 AWG Al
