Actual Product May Vary From Image

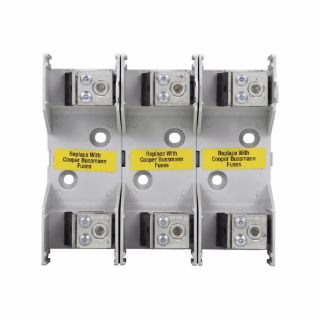

JM60100-3CR BSF

Name: JM60100-3CR BSF
Brand: Bussmann
SKU: JM60100-3CR BSF
Price: 400.19 USD
Availability: OutOfStock

Bussmann JM60100-3CR Fuse Block, 600 VAC, 70 to 100 A, Class J, 1 to 3 AWG, 4 to 6 AWG, 8 AWG Wire, 3 Poles

Manufacturer: Bussmann

Manufacturer part number: JM60100-3CR

Availability: Expected Leadtime 7 days

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON
0
Loading...

$400.19

Qty:

Product Details

Brand Name

Bussmann

Description

Eaton's Bussmann series power distribution fuse blocks (PDFB) combine a fuse block and power distribution block into one component. This patented design simplifies your panel layout and uses up to 65% less panel space. Additionally, it lowers inventory costs while reducing installation time and labor by 33%. Bussmann series PDFBs are available for Class J ferrule and knifeblade fuses. PDFBs up to 60 amps feature DIN-Rail and panel mount versatility for ease of installation. Additionally, PDFBs use fewer wire connections, reducing watts loss and overall operating temperature of the panel

Bussmann Fuse Block, 600 VAC, 70 to 100 A, 3 Poles, Class: J, 1 to 3 AWG, 4 to 6 AWG, 8 AWG Wire, Hole Mount, -40 to 120 deg C, For Use With: Knife Blade Cartridge Fuse, Thermoplastic, 6 in L x 6 in W x 2.8 in H

Application

Any Panel or Electrical System Applications

Standards

UL File No. E14853, Guide IZLT, IZLT7 | CSA File No. 47235-6225-01 | CE Certified

Features

Integral dovetails allow assembly of multiple poles at point-of-use for greater application flexibility
Up to four mounting holes per pole increase installation flexibility
Standard phase barriers between poles for additional safety
Design meets UL creep and clearance requirements for industrial power circuits (UL 508 and UL 845)
200 to 600 A blocks meet the higher UL creep and clearance requirements for power distribution standards (UL 98, UL 67, UL 489, UL 891 and UL 869A)
Standard fuse clip reinforcing springs enhance electrical contact
1/0 to 3 AWG, (2) 4 to 6 AWG copper, 4 to 6 AWG, (2) 8 AWG copper, 8 AWG, (2) 10 to 14 AWG copper, 10 to 14 AWG copper, 10 to 12 AWG aluminum solid and stranded wire

Specifications

Amperage Rating:	70 to 100 A
Class:	J
Connection Type:	Box Lug
Country of Origin:	MX
Dimensions:	5.5 in L x 6 in W x 2.8 in H
Fuse Diameter:	1.13 in
Fuse Holder Code:	AB
Fuse Length:	4.63 in
Material:	Thermoplastic
Mounting Type:	Hole
Number of Poles:	3
Series:	JM600
Suitable For Use With:	Knife Blade Cartridge Fuse
Temperature Rating:	-40 to 120 deg C
Voltage Rating:	600 VAC
Wire Size:	1 to 3 AWG, 4 to 6 AWG, 8 AWG

Customers who bought this item also bought

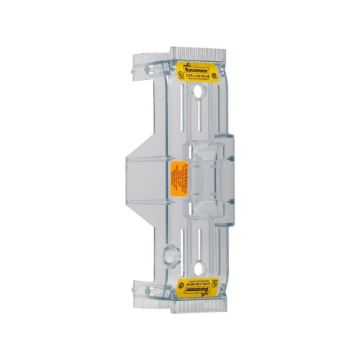

CVR-J-60100-M BSF
