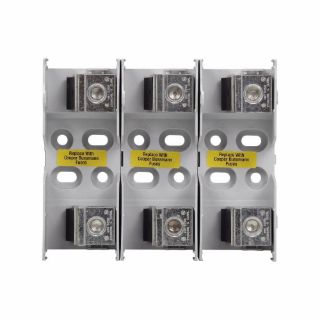

Picture of JM60200-3CR BSF
Actual Product May Vary From Image

JM60200-3CR BSF

Bussmann JM60200-3CR Fuse Block, 600 VAC, 110 to 200 A, Class J, 1 to 3/0 AWG, 6 to 2 AWG, 1 AWG to 200 kcmil Wire, 3 Poles
Manufacturer: Bussmann
Manufacturer part number: JM60200-3CR
Availability: Expected Leadtime 7 days
Estimated dates are contingent upon manufacturer stock.
CBT - Cincinnati CBT - Springboro CBT - Sidney
0 0 0
CRUSH BEARINGS & DRIVES - LEXINGTON
0
Loading...
$1,532.18

Product Details

Brand Name

Bussmann

Description

Eaton's Bussmann series power distribution fuse blocks (PDFB) combine a fuse block and power distribution block into one component. This patented design simplifies your panel layout and uses up to 65% less panel space. Additionally, it lowers inventory costs while reducing installation time and labor by 33%. Bussmann series PDFBs are available for Class J ferrule and knifeblade fuses. PDFBs up to 60 amps feature DIN-Rail and panel mount versatility for ease of installation. Additionally, PDFBs use fewer wire connections, reducing watts loss and overall operating temperature of the panel
Bussmann Fuse Block, 600 VAC, 110 to 200 A, 3 Poles, Class: J, 1 to 3/0 AWG, 6 to 2 AWG, 1 AWG to 200 kcmil Wire, Hole Mount, -40 to 120 deg C, For Use With: Knife Blade Cartridge Fuse, Thermoplastic, 7.3 in L x 7.9 in W x 3.8 in H

Application

Any Panel or Electrical System Applications

Standards

UL File No. E14853, Guide IZLT, IZLT7 | CSA File No. 47235-6225-01 | CE Certified

Features

  • Integral dovetails allow assembly of multiple poles at point-of-use for greater application flexibility
  • Up to four mounting holes per pole increase installation flexibility
  • Standard phase barriers between poles for additional safety
  • Design meets UL creep and clearance requirements for industrial power circuits (UL 508 and UL 845)
  • 200 to 600 A blocks meet the higher UL creep and clearance requirements for power distribution standards (UL 98, UL 67, UL 489, UL 891 and UL 869A)
  • Standard fuse clip reinforcing springs enhance electrical contact
  • 1 AWG to 250 kcmil, 2 to 6 AWG, (2) 2 to 6 AWG copper solid and stranded 1 to 3/0 AWG, 6 to 2 AWG copper fine stranded wire

Specifications

Amperage Rating:110 to 200 A
Class:J
Connection Type:Box Lug
Country of Origin:MX
Dimensions:6.8 in L x 7.9 in W x 3.8 in H
Fuse Diameter:1.63 in
Fuse Holder Code:AC
Fuse Length:5-3/4 in
Material:Thermoplastic
Mounting Type:Hole
Number of Poles:3
Series:JM600
Suitable For Use With:Knife Blade Cartridge Fuse
Temperature Rating:-40 to 120 deg C
Voltage Rating:600 VAC
Wire Size:1 to 3/0 AWG, 6 to 2 AWG, 1 AWG to 200 kcmil
