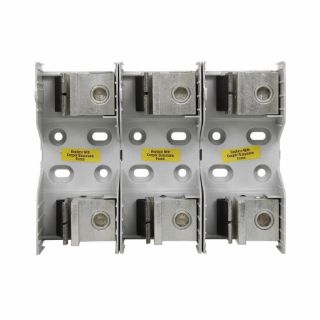

Picture of JM60400-3CR BSF
Actual Product May Vary From Image

JM60400-3CR BSF

Bussmann JM60400-3CR JM600 Modular Fuse Block, 600 VAC, 225 to 400 A, Class: J, 4 AWG to 600 kcmil, 4 to 3/0 AWG Wire, 3 Poles
Manufacturer: Bussmann
Manufacturer part number: JM60400-3CR
Availability: Expected Leadtime 7 days
Estimated dates are contingent upon manufacturer stock.
CBT - Cincinnati CBT - Springboro CBT - Sidney
0 0 2
CRUSH BEARINGS & DRIVES - LEXINGTON
0
Loading...
$3,453.20

Product Details

Brand Name

Bussmann

Type

Modular

Description

Class J modular fuse blocks enhance safety for any panel or electrical system design and are available for the full class J fuse amp range. All blocks are available as 1-pole versions that snap together at point of use or as factory configured 2 and 3-pole versions. All blocks are equipped with a fuse clip reinforcing spring to minimize temperature rise while maintaining reliable surface contact between the fuse and clip over the block's service life.
Bussmann Fuse Block, Modular, Series: JM600, 600 VAC, 225 to 400 A, 3 Pole, Class: J, Knife Blade End, 4 AWG to 600 kcmil, 4 to 3/0 AWG Wire, Panel Mount, 7.13 in Fuse Length, 2 in Fuse Dia, -40 to 120 deg C, For Use With: Low-Peak™ LPJ, Limitron™ JKS and DFJ Knife Blade Fuse, Thermoplastic, 8 in L x 10.4 in W x 4.9 in H

Application

Electrical Assemblies, Any Panel or Electrical System Applications, Panels and OEMs

Standards

CE Certified | CSA File No. 47235-6225-01 | RoHS Compliant | UL File No. E14853 | UL Guide IZLT/IZLT7

Features

  • Integral dovetails allow assembly of multiple poles at point-of-use for greater application flexibility
  • Up to four mounting holes per pole increase installation flexibility
  • Standard phase barriers between poles for additional safety
  • Design meets UL creep and clearance requirements for industrial power circuits
  • 200 to 600 A blocks meet the higher UL creep and clearance requirements for power distribution standards
  • Standard fuse clip reinforcing springs enhance electrical contact

Specifications

Amperage Rating:225 to 400 A
Class:J
Connection Type:Knife Blade End
Country of Origin:MX
Dimensions:8 in L x 10.4 in W x 4.9 in H
Fuse Diameter:2 in
Fuse Length:7.13 in
Material:Thermoplastic
Mounting Type:Hole
Number of Poles:3
Series:JM Series
Suitable For Use With:Knife Blade Cartridge Fuse
Temperature Rating:-40 to 120 deg C
Voltage Rating:600 VAC
Wire Size:4 AWG to 600 kcmil, 4 to 3/0 AWG
