JMM3546T-5 BLD

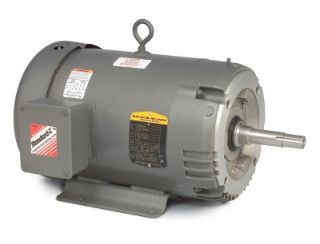

Picture of JMM3546T-5 BLD
Actual Product May Vary From Image

Product Details

Manufacturer:
Baldor Reliance
Manufacturer part number:
JMM3546T-5
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 1-3 days.
Estimated dates are contingent upon manufacturer stock.
Price on Request

Description

Brand Name

Baldor-Reliance

Type

AC Motors

Application

General Purpose

Features

1HP,1750RPM,3PH,60HZ,143JM,3516M,TEFC,F1

Specifications

Base:Rigid
Country of Origin:US
Duty:Continuous
Enclosure:TEFC
Frame:143
Frequency Rating:60 Hz
Full Load Current:1.3 A
Horsepower:1.000 hp
Insulation Class:F
Mounting:F1
NEMA Design:B
NEMA Nominal Efficincy:82.50%
Phase:Three Phase
Power Factor:73
Rotation:Reversible
Service Factor:1.15
Speed Rating:1,750 rpm
Voltage Rating:575 V

Resources

Spec SheetWarranty

Products Specifications

Brand Name
Baldor-Reliance
Enclosure
TEFC
Frame
143JM
Frequency Rating
60 Hz
Horsepower
1 HP
Speed Rating
1800 RPM
Type
200 & 575 Volt Motor
Voltage Rating
575
