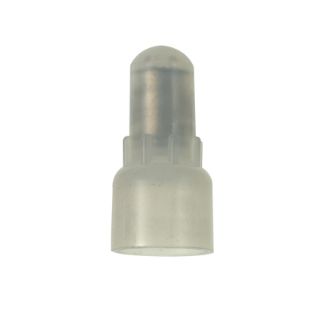

Picture of JN218-216-CN PAN
Actual Product May Vary From Image

JN218-216-CN PAN

Panduit® JN218-216-C JN Series Insulated Wire Joint, 600 VAC, 22 to 16 AWG Wire, 0.78 in L, Brass
Manufacturer: Panduit
Manufacturer part number: JN218-216-C
Availability: Ships in 4-6 days.
Estimated dates are contingent upon manufacturer stock.
CBT - Cincinnati CBT - Springboro CBT - Sidney
0 0 0
CRUSH BEARINGS & DRIVES - LEXINGTON CRUSH BEARINGS & DRIVES - LOUISVILLE
0 0
Loading...
$0.60

Product Details

Brand Name

Panduit®

Type

Insulated

Alternate Supplier #

Fastenal - 0711108

Description

Panduit®, JN218-216-C, Wire Joint, Insulated, Series: JN Series, 600 VAC, 22 to 16 AWG Wire, 0.78 in Length, 7/16 in Wire Strip Length, 221 deg F, For Use With: CT-1550, CT-1551 and CT-2500 Crimping Tool, Specifications: 0.27 in Maximum Insulation, Brass, Clear, TiN Coated

Standards

ABS Approved | ARRA Compliant | Buy American Act Compliant | CSA C22.2 File No. 65 | CSA File No. LR31212 | RoHS Compliant | UL File No. 486C | UL File No. 587H | UL File No. E52164 | UL94 V-2 HB Flammability Rated

Features

  • Large barrel, designed to accommodate from 1 to 7 wires with just one crimp
  • Accommodates multiple wire sizes in varying combinations
  • Barrel of terminal internally beveled to provide quick and easy wire insertion

Specifications

Color:Clear
Country of Origin:MX
Dimensions:0.12 in ID x 0.21 in OD
Finish:TiN Coated
Length:0.78 in
Material:Brass
Series:JN Series
Specifications:0.27 in Dia Maximum Insulation, 221 deg F
Suitable For Use With:CT-1550, CT-1551 and CT-2500 Crimping Tool
Temperature Rating:221 deg F
Voltage Rating:600 VAC
Wire Size:22 to 16 AWG
Wire Strip Length:7/16 in
