Actual Product May Vary From Image

JT60030 BSF

Name: JT60030 BSF
Brand: Bussmann
SKU: JT60030 BSF
Price: 83.32 USD
Availability: InStock

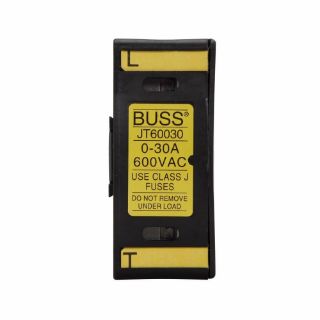

Bussmann JT60030 Finger Safe Fuse Holder, 600 V, 30 A, Class: J, 18 to 8 AWG Wire, 1 Pole

Manufacturer: Bussmann

Manufacturer part number: JT60030

Availability: Expected Leadtime 7 days

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	2
CRUSH BEARINGS & DRIVES - LEXINGTON
0
Loading...

$83.32

Qty:

Product Details

Brand Name

Bussmann

Type

Finger Safe

Description

Eaton's Bussmann series power distribution fuse blocks (PDFB) combine a fuse block and power distribution block into one component. This patented design simplifies your panel layout and uses up to 65% less panel space. Additionally, it lowers inventory costs while reducing installation time and labor by 33%. Bussmann series PDFBs are available for Class J ferrule and knifeblade fuses. PDFBs up to 60 amps feature DIN-Rail and panel mount versatility for ease of installation. Additionally, PDFBs use fewer wire connections, reducing watts loss and overall operating temperature of the panel

Bussmann Fuse Holder, Finger Safe, Series: JT, 600 V, 30 A, 1 Pole, Class: J, Fuse Holder Code: Z, Box Lug, 18 to 8 AWG Wire, DIN Rail Mount, 2-1/4 in Fuse Length, 0.81 in Fuse Dia, 75 deg C, For Use With: LPJ, JKS Series Class J Non-Indicating Fuses, Thermoplastic, Black, 2.52 in L x 1.23 in W x 2.75 in H

Application

Electrical Assemblies, Panels and EOEMs, industrial Controls, Process Controls and Small HP VFDs Applications

Standards

CE Certified | CSA 47235 | CSA 6225-01 | IEC 60529 | RoHS Compliant | UL 14853 | UL 4248 | UL Guide IZLT

Features

Short circuit current rating of 300 kA with Cooper Bussmann LPJ_SP fuses
1-piece interlocking design for assembling multiple pole blocks reduces inventory costs
Removable fuse carrier allows fuse replacement away from base while maintaining finger safe rating
Rapid, flexible 35 mm DIN rail mounting
18 to 8 AWG copper wire
Tin plated copper alloy terminal
Without indicator
Touchsafe holder

Specifications

Amperage Rating:	30 A
Class:	J
Color:	Black
Connection Type:	Box Lug
Country of Origin:	MX
Dimensions:	2.52 in L x 1.23 in W x 2.75 in H
Fuse Diameter:	0.81 in
Fuse Holder Code:	Z
Fuse Length:	2-1/4 in
Material:	Thermoplastic
Mounting Type:	DIN Rail
Number of Poles:	1
Series:	JT
Suitable For Use With:	LPJ, JKS Series Class J Non-Indicating Fuses
Temperature Rating:	75 deg C
Voltage Rating:	600 V
Wire Size:	18 to 8 AWG

Customers who bought this item also bought

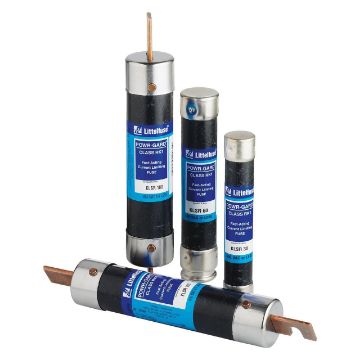

KLNR010 LIT
