JTD200ID LIT

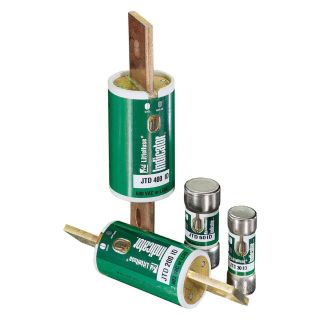

Littelfuse® POWR-GARD® JTD200ID Current Limiting Time Delay Fuse, 200 A, 600 VAC/500 VDC, 200/20 kA Interrupt, J Class, Cartridge Body
Manufacturer: Littelfuse
Manufacturer part number: JTD200ID
Availability: Ships in 4-6 days.
Estimated dates are contingent upon manufacturer stock.
CBT - Cincinnati CBT - Springboro CBT - Sidney
0 0 0
CRUSH BEARINGS & DRIVES - LEXINGTON CRUSH BEARINGS & DRIVES - LOUISVILLE
0 0
Loading...
$308.48

Product Details

Brand Name

Littelfuse®

Type

Current Limiting

Description

The Littelfuse® POWR-PRO® JTD_ID Indicator Class J fuse provides visual blown fuse indication and maximum protection in a compact package. The compact Class J package was designed specifically for circuits where space is at a premium. The current limiting time delay JTD_ID offers a patented true dual-element design that is ideal for use in circuits with high inrush currents. Superior performance characteristics of JTD_ID Indicator fuses reduce nuisance fuse opening and the blown fuse indication reduces downtime and increases safety.
Littelfuse® POWR-GARD® Time Delay Fuse, Current Limiting, Series: JTD, Indicating, 200 A, 600 VAC/500 VDC, 200/20 kA Interrupt, Class: J, Knife Blade Terminal, Bolt Mounting, Cartridge Body, Dual Element, Melamine, 1-1/2 in Dia x 5-3/4 in L Body

Application

Motor Control Centers Applications

Standards

UL 248-8 File No.E81895 | CSA File No.LR29862 | PROP65: This product can expose you to chemicals including nickel, which is known to the State of California to cause cancer

Features

  • Reduced down time - A glance at the indicating window of a JTD_ID indicator fuse pinpoints open fuses immediately
  • Machine operators can immediately determine that there is an open fuse and request maintenance personnel to bring the proper replacement
  • Reduce nuisance opening - indicator fuses have superior time-delay and cycling characteristics they can be used on a variety of applications, thus decreasing fuse inventory
  • Reduce fuse inventory - Because JTD_ID indicator fuses have superior performance characteristics they can be used on a variety of applications, thus decreasing fuse inventory
  • Reduce equipment damage - indicator fuses provide superior overload and short circuit protection that can reduce equipment damage
  • Indicator fuses also provide IEC type II "No Damage" protection to IEC and NEMA type motor starters
  • Reduce accidents the JTD_ID indicator fuse improves safety by minimizing exposure to live circuits
  • IEC type 2 protection
  • 200 kA rms symmetrical at 600 VAC/20 kA at 500 VDC

Specifications

Amperage Rating:200 A
Body Size:1-1/2 in Dia x 5-3/4 in L
Body Type:Cartridge
Class:J
Country of Origin:MX
Element:Dual
Indicating/Non-Indicating:Indicating
Interrupt Rating:200/20 kA
Material:Melamine
Mounting Type:Bolt
Series:JTD
Terminal Type:Knife Blade
Voltage Rating:600 VAC/500 VDC
