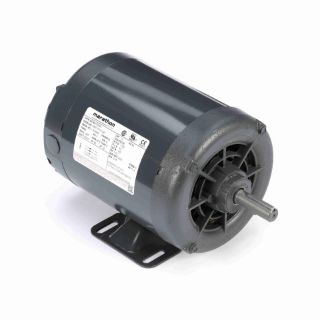

K003A MAR

Name: K003A MAR
Brand: Marathon Electric Motors
SKU: K003A MAR
Availability: OutOfStock

Actual Product May Vary From Image

Product Details

Manufacturer:

Marathon Electric Motors

Manufacturer part number:

K003A

CBT Inventory

Vendor Inventory

Availability:

Expected Leadtime 10 days

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Alternate Supplier #

056T17D11047

Features

Meets or exceeds all USA mandated efficiencies Motors are suitable for 10:1 VT and 10:1 CT 1.15 Service Factor on sinewave, 1.0 Service Factor on IGBT power

Specifications

Assembly/Box Mounting:	F1 OUT ODE BRKT RADIAL
C Dim (IN):	11.72
CE:	Y
Connection Drawing Number:	D0000569-001
Country of Origin:	Mexico
CSA:	Y
Current:	3.3
DE Bearing Size:	6203
DE Bearing Type:	Ball
Duty:	Continuous
Efficiency:	83.5
Electrical Type:	Squirrel Cage Induction Run
Enclosure Type:	Drip Proof
Frame Length (IN):	5.75
Frame Material:	Rolled Steel
Frame Size:	56
Frame Type:	56
Frequency:	60
HP:	1
Insulation Class:	B
IP Code:	22
KVA Code:	M
Max Ambient:	40°C
Motor Orientation:	Horizontal
Mounting Type:	Rigid Base
NEMA Design:	B
Number of Poles:	4
Number of Speeds:	1
ODE Bearing Size:	6203
ODE Bearing Type:	Ball
Outline Drawing Number:	056T17D11047
Phases:	3
Power Factor:	77.4
Power Rating (HP):	1
Power Rating (kW):	0.75
Resistance Main:	0
Rotation:	Reversible
Service Factor:	1.15
Shaft Diameter (IN):	0.625
Shaft Extension:	2.51
Shaft Type:	T
Speed:	1725
Speed Max:	1725
Starting Type:	Across The Line
Type of Overload Protector:	No
UL:	Recognized
Voltage:	208
