K007 MAR

Name: K007 MAR
Brand: Marathon Electric Motors
SKU: K007 MAR
Availability: OutOfStock

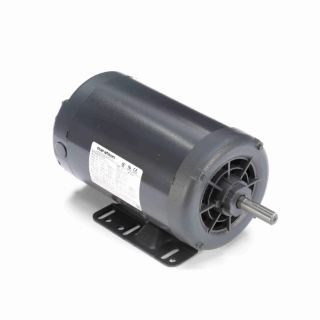

Actual Product May Vary From Image

Product Details

Manufacturer:

Marathon Electric Motors

Manufacturer part number:

K007

CBT Inventory

Vendor Inventory

Availability:

Expected Leadtime 10 days

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Alternate Supplier #

056T11D5304

Features

EISA compliant efficiencies, as noted Ball bearings NEMA Service Factors Will accept C-Face Kits, see Accessories Section UL Recognized and CSA Certified

Specifications

Assembly/Box Mounting:	F1 Only
C Dim (IN):	11.44
CE:	Y
Connection Drawing Number:	A-EE7308
Country of Origin:	United States of America
CSA:	Y
Current:	4.0-4.2/2.1
DE Bearing Size:	6203
DE Bearing Type:	Ball
Duty:	Continuous
Efficiency:	75.5
Electrical Type:	Squirrel Cage Induction Run
Enclosure Type:	Drip Proof
Frame Length (IN):	7.56
Frame Material:	Rolled Steel
Frame Size:	56
Frame Suffix:	H
Frame Type:	56H
Frequency:	60
Harmonized Tariff Code:	8501.52.4000
HP:	1
Insulation Class:	B
IP Code:	22
KVA Code:	K
Max Ambient:	40°C
Motor Orientation:	Horizontal
Mounting Type:	Rigid Base
NEMA Design:	B
Number of Poles:	6
Number of Speeds:	1
ODE Bearing Size:	6203
ODE Bearing Type:	Ball
Outline Drawing Number:	A-100095-756
Phases:	3
Power Factor:	60.7
Power Rating (HP):	1
Power Rating (kW):	0.75
Resistance Main:	20.6
Rotation:	Reversible
Service Factor:	1.15
Shaft Diameter (IN):	0.625
Shaft Extension:	1.88
Shaft Type:	T
Speed:	1140
Speed Max:	1140
Starting Type:	Across The Line
Type of Overload Protector:	No
UL:	Recognized
Voltage:	208-230/460
