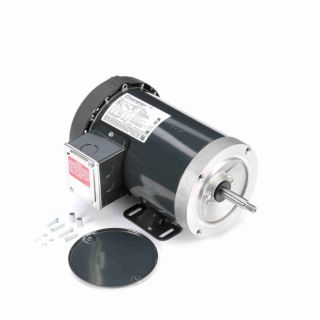

K009 MAR

Name: K009 MAR
Brand: Marathon Electric Motors
SKU: K009 MAR
Availability: OutOfStock

Actual Product May Vary From Image

Product Details

Manufacturer:

Marathon Electric Motors

Manufacturer part number:

K009

CBT Inventory

Vendor Inventory

Availability:

Expected Leadtime 10 days

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Alternate Supplier #

056T34D5303

Features

EISA compliant efficiencies, as noted Ball bearings NEMA Service Factors Will accept C-Face Kits, see Accessories Section UL Recognized and CSA Certified

Specifications

Assembly/Box Mounting:	F1 Only
C Dim (IN):	10.44
CE:	Y
Connection Drawing Number:	A-EE7308
Country of Origin:	United States of America
CSA:	Y
Current:	5.2-5.0/2.5
DE Bearing Size:	6203
DE Bearing Type:	Ball
Duty:	Continuous
Efficiency:	80
Electrical Type:	Squirrel Cage Induction Run
Enclosure Type:	Drip Proof
Frame Length (IN):	6.56
Frame Material:	Rolled Steel
Frame Size:	56
Frame Type:	56
Frequency:	60
Harmonized Tariff Code:	8501.52.4000
HP:	1.50
Insulation Class:	B
IP Code:	22
KVA Code:	J
Max Ambient:	40°C
Motor Orientation:	Horizontal
Mounting Type:	Rigid Base
NEMA Design:	B
Number of Poles:	2
Number of Speeds:	1
ODE Bearing Size:	6203
ODE Bearing Type:	Ball
Outline Drawing Number:	A-100091-656
Phases:	3
Power Factor:	74.4
Power Rating (HP):	1.50
Power Rating (kW):	1.1
Resistance Main:	3.85
Rotation:	Reversible
Service Factor:	1.15
Shaft Diameter (IN):	0.625
Shaft Extension:	2.32
Shaft Type:	NEMA 56
Speed:	3450
Speed Max:	3450
Starting Type:	Across The Line
Type of Overload Protector:	No
UL:	Recognized
Voltage:	208-230/460
