K022 MAR

Name: K022 MAR
Brand: Marathon Electric Motors
SKU: K022 MAR
Availability: OutOfStock

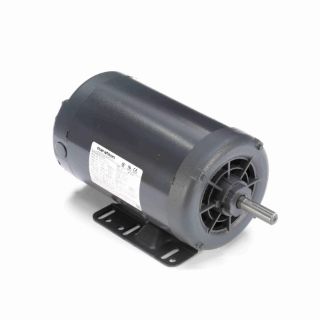

Actual Product May Vary From Image

Product Details

Manufacturer:

Marathon Electric Motors

Manufacturer part number:

K022

CBT Inventory

Vendor Inventory

Availability:

Expected Leadtime 10 days

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Alternate Supplier #

056T17D5309

Features

EISA compliant efficiencies, as noted Ball bearings NEMA Service Factors Will accept C-Face Kits, see Accessories Section UL Recognized and CSA Certified

Specifications

Assembly/Box Mounting:	F1 ONLY
C Dim (IN):	10.94
CE:	Y
Connection Drawing Number:	A-EE7308
Country of Origin:	Mexico
CSA:	Y
Current:	4.8-4.8/2.4
DE Bearing Size:	6205
DE Bearing Type:	Ball
Duty:	Continuous
Efficiency:	80
Electrical Type:	Squirrel Cage Induction Run
Enclosure Type:	Drip Proof
Frame Length (IN):	7.6
Frame Material:	Rolled Steel
Frame Size:	56
Frame Suffix:	H
Frame Type:	56H
Frequency:	60
Harmonized Tariff Code:	8501.52.4000
HP:	1.50
Insulation Class:	B
IP Code:	22
KVA Code:	K
Max Ambient:	40°C
Motor Orientation:	Horizontal
Mounting Type:	Rigid Base
NEMA Design:	B
Number of Poles:	4
Number of Speeds:	1
ODE Bearing Size:	6205
ODE Bearing Type:	Ball
Outline Drawing Number:	A-100094-706
Phases:	3
Power Factor:	74
Power Rating (HP):	1.50
Power Rating (kW):	1.1
Resistance Main:	12.1
Rotation:	Reversible
Service Factor:	1.15
Shaft Diameter (IN):	0.625
Shaft Extension:	1.88
Shaft Type:	NEMA 56
Speed:	1725
Speed Max:	1725
Starting Type:	Across The Line
Type of Overload Protector:	No
UL:	Recognized
Voltage:	208-230/460
