K022B MAR

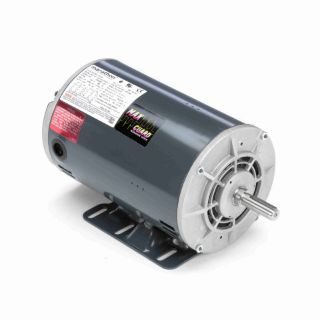

Picture of K022B MAR
Actual Product May Vary From Image

Product Details

Manufacturer:
Marathon Electric Motors
Manufacturer part number:
K022B
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Expected Leadtime 10 days
Estimated dates are contingent upon manufacturer stock.
Price on Request

Description

Alternate Supplier #

056T17D15941

Features

Will accept C-Face Kits except where noted, see Accessories Section See XRI® Dripproof in Premium Efficiency section for NEMA Premium efficiencies

Specifications

Assembly/Box Mounting:F1 ONLY
C Dim (IN):12.94
CE:Y
Connection Drawing Number:A-EE7308-REGAL
Country of Origin:United States of America
CSA:Y
Current:4.4/2.2
DE Bearing Size:6205
DE Bearing Type:Ball
Duty:Continuous
Efficiency:86.5
Electrical Type:Squirrel Cage Induction Run
Enclosure Type:Drip Proof
Frame Length (IN):9.6
Frame Material:Rolled Steel
Frame Size:56
Frame Suffix:H
Frame Type:56H
Frequency:60
Harmonized Tariff Code:8501.52.4000
HP:1.50
Insulation Class:B
IP Code:22
KVA Code:M
Max Ambient:40°C
Motor Orientation:Horizontal
Mounting Type:Rigid Base
NEMA Design:B
Number of Poles:4
Number of Speeds:1
ODE Bearing Size:6203
ODE Bearing Type:Ball
Outline Drawing Number:A-108321-906
Phases:3
Power Factor:75
Power Rating (HP):1.50
Power Rating (kW):1.1
Resistance Main:8.64
Rotation:Reversible
Service Factor:1.15
Shaft Diameter (IN):0.625
Shaft Extension:2.23
Shaft Type:NEMA 56
Speed:1725
Speed Max:1725
Starting Type:Across The Line
Type of Overload Protector:No
UL:Recognized
Voltage:230/460

Resources

Engineering DrawingSpec Sheet

Products Specifications

Brand Name
Marathon
Enclosure
Drip Proof
Horsepower
1 1/2 HP
Speed Rating
1725
Type
Squirrel Cage Induction Run
Voltage Rating
230/460 V
