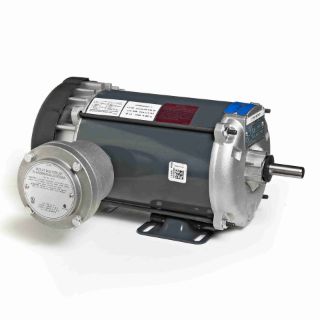

K037 MAR

Name: K037 MAR
Brand: Marathon Electric Motors
SKU: K037 MAR
Availability: OutOfStock

Actual Product May Vary From Image

Product Details

Manufacturer:

Marathon Electric Motors

Manufacturer part number:

K037

CBT Inventory

Vendor Inventory

Availability:

Expected Leadtime 10 days

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Alternate Supplier #

056C17G5308

Features

Automatic reset thermal protector Meets temperature code T3B Capacitor start induction run design Explosion proof conduit box included, shipped loose 1-1/2" thru-bolts, shaft end

Specifications

Assembly/Box Mounting:	F1 Only
C Dim (IN):	13.96
CE:	N
Connection Drawing Number:	102005-110
Country of Origin:	United States of America
CSA:	Y
Current:	6.6
DE Bearing Size:	6203
DE Bearing Type:	Ball
Duty:	Continuous
Efficiency:	55
Electrical Type:	Capacitor Start Induction Run
Enclosure Type:	Explosion Proof Fan cooled
Frame Length (IN):	6.31
Frame Material:	Rolled Steel
Frame Size:	56
Frame Type:	56
Frequency:	60
Harmonized Tariff Code:	8501.40.4040
Hazardous Location:	EXP PROOF CL I GR D CL II GR F&G T3B
HP:	0.33
Insulation Class:	B
IP Code:	54
KVA Code:	N
Max Ambient:	40°C
Motor Orientation:	Horizontal
Mounting Type:	Resilient Base - Extended Studs
NEMA Design:	No Design Code
Number of Poles:	4
Number of Speeds:	1
ODE Bearing Size:	6203
ODE Bearing Type:	Ball
Outline Drawing Number:	B-104200-631
Phases:	1
Power Factor:	60
Power Rating (HP):	0.33
Power Rating (kW):	0.25
Resistance Main:	0
Rotation:	Selective Counterclockwise
Service Factor:	1
Shaft Diameter (IN):	0.625
Shaft Extension:	1.91
Shaft Type:	T
Speed:	1725
Speed Max:	1725
Starting Type:	Across The Line
Type of Overload Protector:	Automatic
UL:	UL Listed And CSA Certified
Voltage:	115
