K041A MAR

Name: K041A MAR
Brand: Marathon Electric Motors
SKU: K041A MAR
Availability: OutOfStock

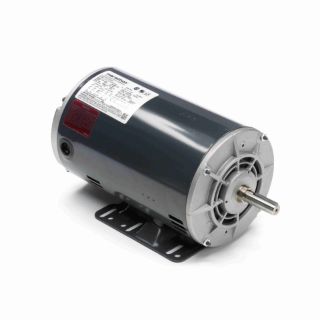

Actual Product May Vary From Image

Product Details

Manufacturer:

Marathon Electric Motors

Manufacturer part number:

K041A

CBT Inventory

Vendor Inventory

Availability:

1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Alternate Supplier #

056T17D15715

Features

SMR compliant efficiency Motor will accept a C-face kit 56H, 143T, and 145T combination base with 12 mounting holes F1 mounting only, cannot reassemble to F2 Rated 60/50 hertz, 190/380 or 380 volt at next lower horsepower NEMA design B

Specifications

Assembly/Box Mounting:	F1 ONLY
C Dim (IN):	13.44
CE:	Y
Connection Drawing Number:	A-EE7308-REGAL
Country of Origin:	Mexico
CSA:	Y
Current:	6.0/3.0
DE Bearing Size:	6205
DE Bearing Type:	Ball
Duty:	Continous
Efficiency:	86.5
Electrical Type:	Squirrel Cage Inverter Rated
Enclosure Type:	Drip Proof
Frame Length (IN):	9.56
Frame Material:	Rolled Steel
Frame Size:	56
Frame Suffix:	H
Frame Type:	56H
Frequency:	60
Harmonized Tariff Code:	8501.52.4000
HP:	2
Insulation Class:	B
IP Code:	22
KVA Code:	N
Max Ambient:	40°C
Motor Orientation:	Horizontal
Mounting Type:	Rigid Base
NEMA Design:	A
Number of Poles:	4
Number of Speeds:	1
ODE Bearing Size:	6203
ODE Bearing Type:	Ball
Outline Drawing Number:	A-108249-956
Phases:	3
Power Factor:	74.5
Power Rating (HP):	2
Power Rating (kW):	1.5
Resistance Main:	6.4
Rotation:	Reversible
Service Factor:	1.15
Shaft Diameter (IN):	0.625
Shaft Extension:	2.23
Shaft Type:	NEMA 56
Speed:	1725
Speed Max:	1725
Starting Type:	Line Or Inverter
Type of Overload Protector:	No
UL:	Recognized
Voltage:	230/460
